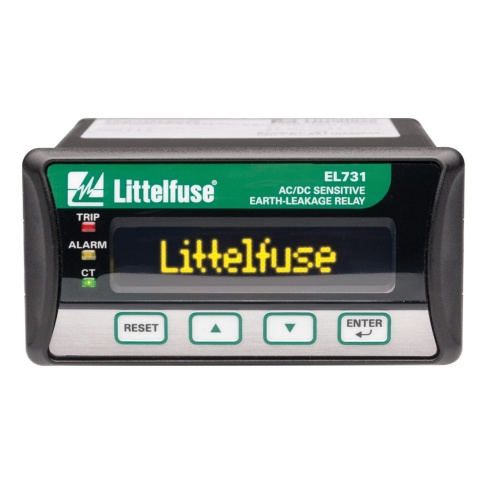

Littelfuse EL731-13-00 Ac/DC Earth-Lkge Relay,32-70vdc,Ethernet
Normally In Stock
Code: 565415
Littelfuse EL731-13-00 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 24 Volt, 48 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3863.27
Sale Price
$3219.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-13-00 is a conformally coated relay with 3 Form C (N.O./N.C.) contacts and fail-safe/non-fail-safe operation. It supports IEEE Device Numbers 38, 49, 50G, 50N, 51G, 51N, and 79G. It has front-panel switch and remote N.O. contact reset options. Suitable for solidly grounded AC/DC and resistance rounded AC systems. Communications supported via EtherNet-IP. Supply voltage is 24V AC and 48V DC. Features harmonic filtering and a GF trip time range of 0.05 to 2.00s. GF trip level range is 0.03 to 5.00A. Supports single PTC/RTD temp sensor and DIN/panel/surface mount methods.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
24 Volt
Component
Ground-Fault Relay
Coil Voltage Rating
48 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
