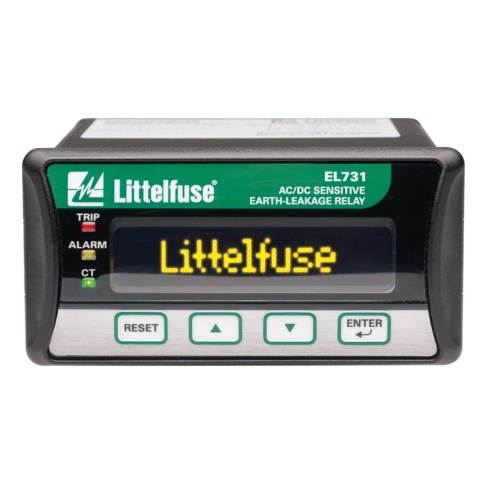

Littelfuse EL731-11-10 Ac/DC Elr,32-70vdc,Devicenet,As2081:2011
Normally In Stock
Code: 565412
Littelfuse EL731-11-10 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 24 Volt, 48 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$3863.27
Sale Price
$3219.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-11-10 is a conformally coated relay with 3 Form C (N.O./N.C.) contacts. It operates as fail-safe or non-fail-safe, with IEEE device numbers 38-49-50G-50N-51G-51N-79G. It features a front-panel switch or remote N.O. contact reset, standard harmonic filtering, and is suitable for solidly grounded AC, solidly grounded DC, and resistance grounded AC systems. With a supply voltage of 24V AC and 48V DC, it offers auto manual reset options. It supports DeviceNet communication and has selectable GF trip times, levels, and a single PTC/RTD temp sensor configuration. Mounting options include DIN, panel, or optional surface installation.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
24 Volt
Component
Ground-Fault Relay
Coil Voltage Rating
48 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
