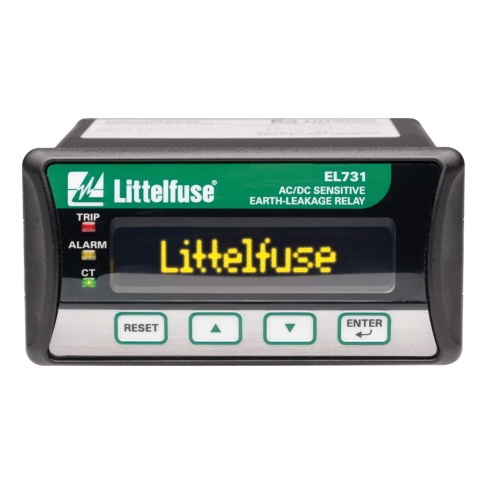

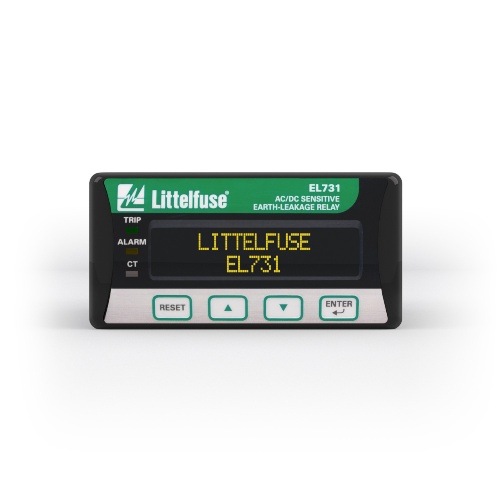

Littelfuse EL731-10-00 Ac/DC Earth-Lkge Relay, 32-70v, No Comm
Normally In Stock
Code: 565409
Littelfuse EL731-10-00 - EL731 Series – Earth-Leakage, Ground-Fault Relay Series - 24 Volt, 48 Volt (DC)
Condition: New
Usually ships Same Day or Next Day$2358.11
Sale Price
$1965.09
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Littelfuse EL731-10-00 is a versatile relay with a frequency range of 0-6000Hz. It features standard conformal coating and 3 Form C relay contacts (N.O./N.C), offering fail-safe/non-fail-safe operation. It supports IEEE device numbers 38-49-50G-50N-51G-51N-79G and offers front-panel or remote N.O. contact reset options. With standard harmonic filtering and various system types supported, it provides reliable protection. The relay operates at both 24V AC and 48V DC supply voltages and offers latching trip or non-latching alarm options for auto-manual reset. Communication capabilities are not included, and it supports a GF trip level of 0.03-5.00A. The sensor configuration is a single PTC/RTD, and mounting options include DIN, panel, or optional surface mounting.
Specifications
Manufacturer
Littelfuse
Coil Voltage Rating
24 Volt
Component
Ground-Fault Relay
Coil Voltage Rating
48 Volt (DC)
Features
Adjustable pickup (30–5,000 mA)
Frequency range (0–90 Hz, 20–6,000 Hz)
32-character OLED display
Local LED indication
CT-loop monitoring
Analog output (4–20 mA)
Adjustable time delay
Alarm and trip settings
Temperature sensor input
Output contacts
