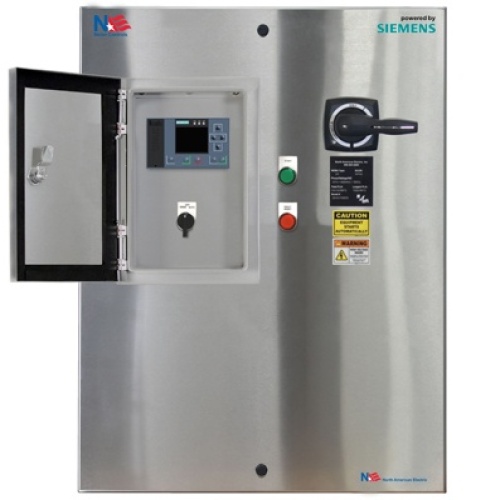

NAE 3044B-0504XP00-32B-4-000 Soft Starter Panel - 68 Amp, 50 HP, 480 VAC, NEMA 4X
Normally In Stock
Code: 553843
NAE 3044B-0504XP00-32B-4-000 - Soft Starter - Normal Starting (Class 10E) - Combination - 480 VAC - 50 HP - NEMA 4X - 68 Amp - Circuit Breaker Disconnect - Chassis: Siemens 3RW5526-1HA14 - 40" x 30" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$12067.43
Sale Price
$10056.19
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 3044B-0504XP00-32B-4-000 - 50 HP, 480V, Soft Starter Panel, Normal Duty, Package includes: Illuminated start pushbutton#Hand/Off/Auto (HOA) selector switch#Illuminated fault / Reset pushbutton#Door Mounted High Feature HMI, 68 Amps, NEMA 4X / Stainless Steel / Washdown Duty Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 40'' H, 30'' W, 12'' D, Siemens Chassis Model # 3RW5526-1HA14, Standard two (2) Year Warranty or optional three (3) Year Warranty w/ ''Lightning & Surge'' Protection including NAE’s ''No Hassle'' Chassis Exchange Program
Specifications
Starter Coil Voltage
480 VAC
Starter NEMA Size
NEMA 4X
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter Amperage
68 Amp
Component
Starter Panel
Starter Horsepower
50 HP
Features
7.5 HP - 1000 HP ratings in stock
Combination circuit breaker disconnect
Siemens 3RW55 Series Device
Detachable HMI with color display, local interface, slot for micro SD card
Three-phase control LED
Heavy Starting (Class 10E) - Please see Starting Class Details on pp 44-48
Integrated By-Pass Contact System
Soft starting and smooth ramp-down
Current limitation and motor overload protection
Parameterization using Keypad
NEMA 4X - Stainless Steel Enclosure
Padlockable door and disconnect
UL 508A Certified
