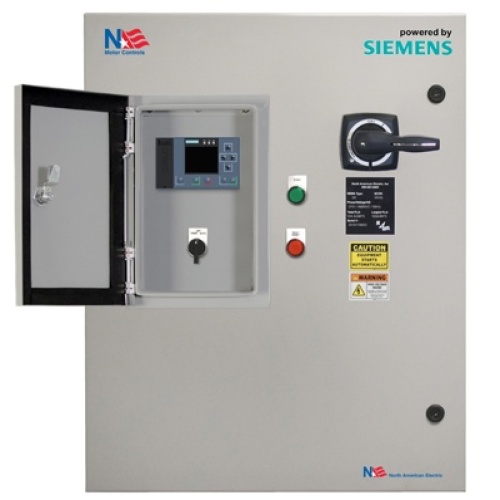

NAE 3044B-0504TP00-32B-4-000 Soft Starter Panel - 68 Amp, 50 HP, 480 VAC, NEMA 4/12
Normally In Stock
Code: 553839
NAE 3044B-0504TP00-32B-4-000 - Soft Starter - Normal Starting (Class 10E) - Combination - 480 VAC - 50 HP - NEMA 4, NEMA 12 - 68 Amp - Circuit Breaker Disconnect - Chassis: Siemens 3RW5526-1HA14 - 40" x 24" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$7540.04
Sale Price
$6283.37
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 3044B-0504TP00-32B-4-000 - 50 HP, 480V, Soft Starter Panel, Normal Duty, Package includes: Illuminated start pushbutton#Hand/Off/Auto (HOA) selector switch#Illuminated fault / Reset pushbutton#Door Mounted High Feature HMI, 68 Amps, NEMA 4/12 Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 40'' H, 24'' W, 12'' D, Siemens Chassis Model # 3RW5526-1HA14, Standard two (2) Year Warranty or optional three (3) Year Warranty w/ ''Lightning & Surge'' Protection including NAE’s ''No Hassle'' Chassis Exchange Program
Specifications
Starter Coil Voltage
480 VAC
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter NEMA Size
NEMA 4
Starter NEMA Size
NEMA 12
Starter Amperage
68 Amp
Component
Starter Panel
Starter Horsepower
50 HP
Features
7.5 HP - 1000 HP ratings in stock
Fully Gasketed / NEMA 4/12 / Heavy Duty Enclosure
Combination circuit breaker disconnect
Siemens 3RW55 Series Device
Detachable HMI with color display, local interface, slot for micro SD card
Three-phase control LED
Heavy Starting (Class 10E) - Please see Starting Class Details on pp 44-48
Integrated By-Pass Contact System
Soft starting and smooth ramp-down
Current limitation and motor overload protection
Parameterization using HMI
Padlockable door and disconnect
UL 508A Certified
