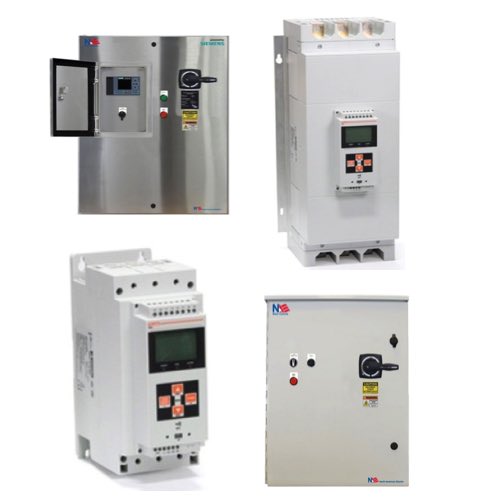

NAE Soft Starters

Filter

The NAE soft starter has been designed to provide efficient control of electric motors when they start. It does this by ramping the voltage up and ensuring that it never exceeds the maximum of the normal "run" condition. This means that if the motor experiences any sort of stall condition during startup, it will not have the same mechanical or electrical stress put upon it that it would have if a standard across-the-line starter had been used. This is crucial not just for the motor in question, but also for the connected equipment; mechanical stress on either the motor or the load is bad news.

NAE soft starters guarantee efficient performance for high-torque applications like pumps, conveyors, and fans. They ensure "direct start-free" conditions, which helps in protecting the motor at startup. The net effect of these two advantages is that the soft starters almost pay for themselves through energy savings. They minimize energy lost in the starting process and maximize energy efficiency at the same time.

NAE 3344B-7P53RP00-32B-4-000 Soft Starter Panel - 11.5 Amp, 7.5 HP, 480 VAC, NEMA 3R

$5243.70 $8963.58

NAE 3344B-7P53RP00-32B-4-000 - 7.5 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 11.5 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 36'' H, 24'' W, 10'' D, Siemens Chassis Model # 3RW5513-1HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-7P53RP00-32B-2-000 Soft Starter Panel - 22.3 Amp, 7.5 HP, 240 VAC, NEMA 3R

$5566.39 $9515.18

NAE 3344B-7P53RP00-32B-2-000 - 7.5 HP, 240V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 22.3 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 36'' H, 24'' W, 10'' D, Siemens Chassis Model # 3RW5515-1HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-6503RP00-32B-4-000 Soft Starter Panel - 720 Amp, 650 HP, 480 VAC, NEMA 3R

$31602.50 $54021.37

NAE 3344B-6503RP00-32B-4-000 - 650 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 720 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5558-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-6003RP00-32B-4-000 Soft Starter Panel - 670 Amp, 600 HP, 480 VAC, NEMA 3R

$28780.02 $49196.62

NAE 3344B-6003RP00-32B-4-000 - 600 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 670 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5556-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-3003RP00-32B-4-002 Soft Starter Panel - 380 Amp, 300 HP, 480 VAC, NEMA 3R

$25934.22 $44332.00

NAE 3344B-3003RP00-32B-4-002 - 300 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 380 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5554-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-3003RP00-32B-4-000 Soft Starter Panel - 360 Amp, 300 HP, 480 VAC, NEMA 3R

$24628.70 $42100.34

NAE 3344B-3003RP00-32B-4-000 - 300 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 360 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5553-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-3003RP00-32B-2-000 Soft Starter Panel - 720 Amp, 300 HP, 240 VAC, NEMA 3R

$31602.50 $54021.37

NAE 3344B-3003RP00-32B-2-000 - 300 HP, 240V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 720 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5558-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-2503RP00-32B-4-000 Soft Starter Panel - 340 Amp, 250 HP, 480 VAC, NEMA 3R

$21914.94 $37461.44

NAE 3344B-2503RP00-32B-4-000 - 250 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 340 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5552-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-2503RP00-32B-2-000 Soft Starter Panel - 670 Amp, 250 HP, 240 VAC, NEMA 3R

$28780.02 $49196.62

NAE 3344B-2503RP00-32B-2-000 - 250 HP, 240V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 670 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5556-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-1503RP00-32B-4-002 Soft Starter Panel - 200 Amp, 150 HP, 480 VAC, NEMA 3R

$20188.12 $34509.60

NAE 3344B-1503RP00-32B-4-002 - 150 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 200 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 36'' W, 12'' D, Siemens Chassis Model # 3RW5548-2HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-1503RP00-32B-4-000 Soft Starter Panel - 190 Amp, 150 HP, 480 VAC, NEMA 3R

$17154.69 $29324.27

NAE 3344B-1503RP00-32B-4-000 - 150 HP, 480V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 190 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 36'' W, 12'' D, Siemens Chassis Model # 3RW5547-2HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

NAE 3344B-1503RP00-32B-2-002 Soft Starter Panel - 380 Amp, 150 HP, 240 VAC, NEMA 3R

$25934.22 $44332.00

NAE 3344B-1503RP00-32B-2-002 - 150 HP, 240V, Soft Starter Panel, Heavy Duty, Package includes: Illuminated start pushbutton, Hand/Off/Auto (HOA) selector switch, Illuminated fault / Reset pushbutton, Door Mounted High Feature HMI, 380 Amps, NEMA 3R Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 60'' H, 48'' W, 12'' D, Siemens Chassis Model # 3RW5554-6HA14

+ Add to Job + Add to Favorites + Add to Quick Quote

FAQs

Do NAE soft starters offer tailored solutions for controlling motor speed in specific motors?

Yes, NAE soft starters offer tailored solutions for controlling motor speed in specific motors, ensuring smooth acceleration and optimized performance for various industrial applications.

Motor Starters, Soft Starters and VFDs

Motor Starters

Motor starters safely start and stop a motor in industrial applications. They are designed with a contactor, overload and circuit protection. They are used when basic motor control is required, where torque on the motor is not a concern and speed control is not needed. The advantages of motor starters include: lower cost, allows for remote operation, allows for monitoring of motor state (with the use of auxiliary contacts) and they are safe and efficient. The disadvantages include: high inrush current that can cause fuses to blow and breakers to trip if the inrush is too high, and the starter will allow a full torque to start the motor which can cause the motor to ramp up to full speed very quickly potentially causing the motor to wear and degrade prematurely.

Soft Starters

Soft starters protect motors from inrush current by gently ramping up the motor to full speed. They provide all of the same functions as a traditional motor starter. The advantages of soft starters include: they are less expensive than a VFD when only startup control is needed, they are a smaller system than a VFD where space is a concern and they prevent unwanted torque upon startup, prolonging the life of the motor. The disadvantages include: they are more expensive than a traditional motor starter and they do not allow for full speed control.

VFDs

Variable Frequency Drives (VFDs) allow for the slow ramp up of a motor during startup and the slowing down of the motor during shutdown. They also allow for full speed control during the entire run cycle of the motor. VFDs provide the same functions as both the traditional motor starters and soft starters. The advantages of VFDs include: full speed control (start, stop and in-between), more custom control and monitoring, energy savings due to efficient motor usage and less wear and tear on the motors. The disadvantages include: they are more expensive and larger than other motor control options and they generate heat that may require fans or AC units.
