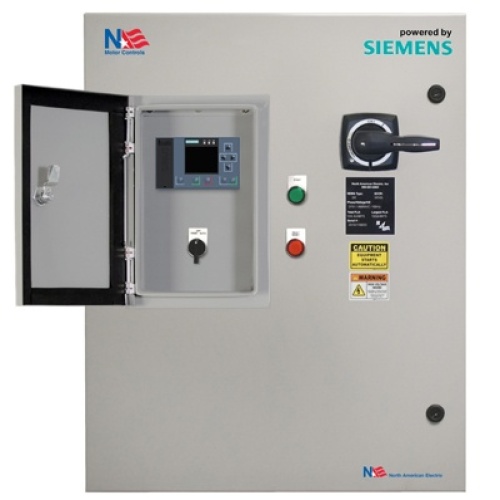

NAE 3044B-0504TP00-32B-2-000 Soft Starter Panel - 153 Amp, 50 HP, 240 VAC, NEMA 4/12
Normally In Stock
Code: 553838
NAE 3044B-0504TP00-32B-2-000 - Soft Starter - Normal Starting (Class 10E) - Combination - 240 VAC - 50 HP - NEMA 4, NEMA 12 - 153 Amp - Circuit Breaker Disconnect - Chassis: Siemens 3RW5536-2HA14 - 40" x 24" x 12" (HxWxD)
Condition: New
Usually ships Same Day or Next Day$10142.72
Sale Price
$8452.27
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE 3044B-0504TP00-32B-2-000 - 50 HP, 240V, Soft Starter Panel, Normal Duty, Package includes: Illuminated start pushbutton#Hand/Off/Auto (HOA) selector switch#Illuminated fault / Reset pushbutton#Door Mounted High Feature HMI, 153 Amps, NEMA 4/12 Enclosure, Through-Door, Circuit Breaker Disconnect, Dimensions 40'' H, 24'' W, 12'' D, Siemens Chassis Model # 3RW5536-2HA14, Standard two (2) Year Warranty or optional three (3) Year Warranty w/ ''Lightning & Surge'' Protection including NAE’s ''No Hassle'' Chassis Exchange Program
Specifications
Starter Coil Voltage
240 VAC
Manufacturer
NAE
Starter Disconnect Type
Circuit Breaker
Starter NEMA Size
NEMA 4
Starter NEMA Size
NEMA 12
Starter Amperage
153 Amp
Component
Starter Panel
Starter Horsepower
50 HP
Features
3 HP - 450 HP ratings in stock
Fully gasketed / NEMA 4/12 / Heavy Duty Enclosure
Combination circuit breaker disconnect
Siemens 3RW55 Series Device
Detachable HMI with color display, local interface, slot for micro SD card
Three-phase control LED
Heavy Starting (Class 10E) - Please see Starting Class Details on pp 44-48
Integrated By-Pass Contact System
Soft starting and smooth ramp-down
Current limitation and motor overload protection
Parameterization using HMI
Padlockable door and disconnect
UL 508A Certified
