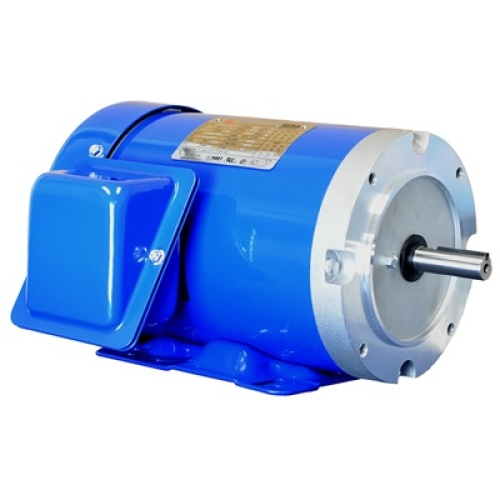

NAE F56C1/2M4A-575V Electric Motor General Purpose Rolled Steel, 575 Volt, 3 Phase, 0.5 HP, 0.7 Amp
Normally In Stock
Code: 216723
NAE F56C1/2M4A-575V Electric Motor 1/2 HP, 1800 RPM, 56C Frame, 575V, 3PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel, Std Eff, Inverter Rated
Condition: New
Usually ships Same Day or Next Day$198.43
Sale Price
$165.36
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
NAE F56C1/2M4A-575V General Purpose Rolled Steel Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial and commercial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; NEMA Design B Performance/ High starting torque; Removable feet; 56CH frames: Feet are dual-drilled for 56C and 143/ 5T mounting flexibility. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells; IP55 protection; Condensation drain with plugs. Sealed bearings; 3-year warranty (extended warranty available)
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Voltage Phases
3 Phase
Motor Insulation Class
Class F Insulation
Motor Voltage
575 Volt
Motor Frequency
60 Hz
Motor NEMA Design
NEMA Design B
Motor RPM's
1800 RPM
Motor Frame Construction
Rolled Steel
Manufacturer
North American Electric Motors
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor Amperage (Full Load)
0.7 Amp
Features
Service factor: 1.15 @ 60 Hz
NEMA Design B Performance/ High starting torque
Removable feet
56CH frames: Feet are dual-drilled for 56C and 143/ 5T mounting flexibility
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells
IP55 protection
Condensation drain with plugs
Sealed bearings
3-year warranty (extended warranty available)
