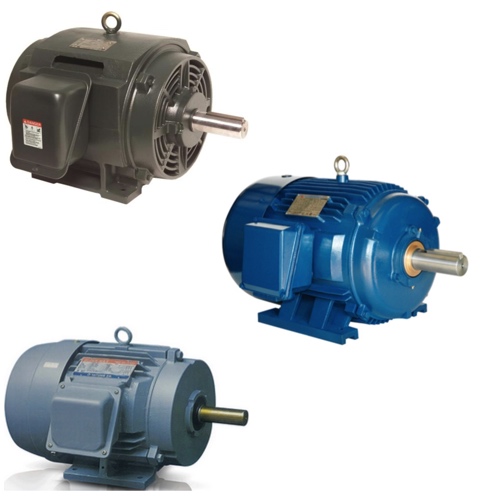

General Purpose Motors

General purpose motors are versatile electric motors designed to meet a wide range of applications and operating conditions. They are designed to operate effectively across a broad speed range, offering flexibility in various applications.
Many general purpose motors are designed to be energy-efficient, helping to reduce electricity costs and overall operating costs. They may incorporate technologies such as high-efficiency windings, improved insulation, and optimized designs to provide lower energy consumption.
General purpose motors often feature a totally enclosed design with a fan for cooling. This design provides protection against dust, moisture, and other contaminants, making them suitable for use in various environments. They are built with robust and durable construction to withstand demanding applications. They may feature enclosed cast iron designs or other rugged designs to ensure reliability and longevity.
Subcategories
Products
More Information about General Purpose Motors
General purpose motors often comply with NEMA standards, ensuring their performance and interchangeability with other NEMA-compliant equipment. They may be available in both single-phase and three-phase configurations.
Some general purpose motors are designed to be compatible with variable frequency drives (VFDs) or inverters. These motors are specifically rated to handle the unique electrical characteristics associated with VFD operation.
In addition to Totally Enclosed Fan Cooled (TEFC), some general purpose motors may be available in an open drip-proof design, which allows airflow through the motor while providing protection against dripping water and light splashing.
General purpose motors may come in C-face designs, which include a mounting flange for direct coupling to specific applications such as pumps or gearboxes.
FAQs
Do general purpose motors include inverter duty motors that have wide variable torque speed?
Yes, general purpose motors can include inverter duty motors that have a wide variable torque speed range. Inverter duty motors are designed to operate effectively with variable frequency drives (VFDs) or inverters, which allow for precise control of motor speed and torque.
Do all robust NEMA motors provide energy efficiency?
Not all robust NEMA motors inherently provide energy efficiency. The NEMA (National Electrical Manufacturers Association) standard defines various motor designs and performance criteria, but it does not specify energy efficiency requirements for all motor types.
Motor Starters, Soft Starters and VFDs
Motor Starters
Motor starters safely start and stop a motor in industrial applications. They are designed with a contactor, overload and circuit protection. They are used when basic motor control is required, where torque on the motor is not a concern and speed control is not needed. The advantages of motor starters include: lower cost, allows for remote operation, allows for monitoring of motor state (with the use of auxiliary contacts) and they are safe and efficient. The disadvantages include: high inrush current that can cause fuses to blow and breakers to trip if the inrush is too high, and the starter will allow a full torque to start the motor which can cause the motor to ramp up to full speed very quickly potentially causing the motor to wear and degrade prematurely.
Soft Starters
Soft starters protect motors from inrush current by gently ramping up the motor to full speed. They provide all of the same functions as a traditional motor starter. The advantages of soft starters include: they are less expensive than a VFD when only startup control is needed, they are a smaller system than a VFD where space is a concern and they prevent unwanted torque upon startup, prolonging the life of the motor. The disadvantages include: they are more expensive than a traditional motor starter and they do not allow for full speed control.
VFDs
A Variable Frequency Drive (VFD) allows for the slow ramp up of a motor during startup and the slowing down of the motor during shutdown. It also allows for full speed control during the entire run cycle of the motor. VFDs provide the same functions as both the traditional motor starters and soft starters. The advantages of VFDs include: full speed control (start, stop and in-between), more custom control and monitoring, energy savings due to efficient motor usage and less wear and tear on the motors. The disadvantages include: they are more expensive and larger than other motor control options and they generate heat that may require fans or AC units.
