Code: 216724

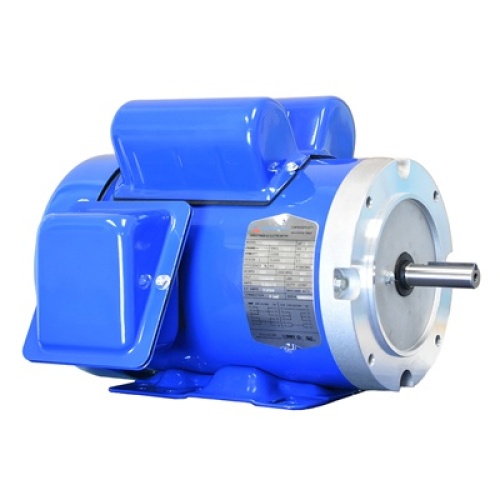

NAE F56C1/2S2C Electric Motor General Purpose Rolled Steel, 115 Volt, 208-230 Volt, 1 Phase, 0.5 HP, 5.03 Amp, 2.78-2.52 Amp
Normally In Stock
NAE F56C1/2S2C Electric Motor 1/2 HP, 3600 RPM, 56C Frame, 115/208-230V, 1PH, NEMA Design B, 60HZ, 1.15 S.F., TEFC, Gen Purp, Rolled Steel
Condition: New
Usually ships Same Day or Next Day$202.93
Sale Price
$169.11
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
NAE F56C1/2S2C General Purpose Rolled Steel Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Farm equipment; Other industrial and commercial machinery; Damp, dusty or dirty environments> Service factor: 1.15 @ 60 Hz; NEMA Design B Performance/ High starting torgue; Removable feet; 56CH frames: Dual-drilled feet for 56C and 143/ 5T mounting flexibility; Capacitor start/ capacitor run design. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells; IP55 protection; Condensation drain with plugs. Sealed bearings; 2-year warranty
Specifications
Motor Enclosure Type
Totally Enclosed Fan Cooled
Motor Insulation Class
Class F Insulation
Motor Frequency
60 Hz
Motor RPM's
3600 RPM
Motor Voltage
115 Volt
Motor Voltage
208-230 Volt
Motor Voltage Phases
1 Phase
Motor NEMA Design
NEMA Design L
Motor Frame Construction
Rolled Steel
Manufacturer
North American Electric Motors
Motor Frame Model
56C
Motor Horsepower
0.5 HP
Motor Amperage (Full Load)
5.03 Amp
Motor Amperage (Full Load)
2.78 - 2.52 Amp
Features
Service factor: 1.15 @ 60 Hz
NEMA Design B Performance/ High starting torgue
Removable feet
56CH frames: Dual-drilled feet for 56C and 143/ 5T mounting flexibility
Capacitor start/ capacitor run design
Class F insulation system
Class B rise at full load
Class H vacuum pressure impregnation (VPI) resin for all windings
Corrosion-resistant epoxy paint, stainless steel nameplate and zinc plated hardware and aluminum endbells
IP55 protection
Condensation drain with plugs
Sealed bearings
2-year warranty
