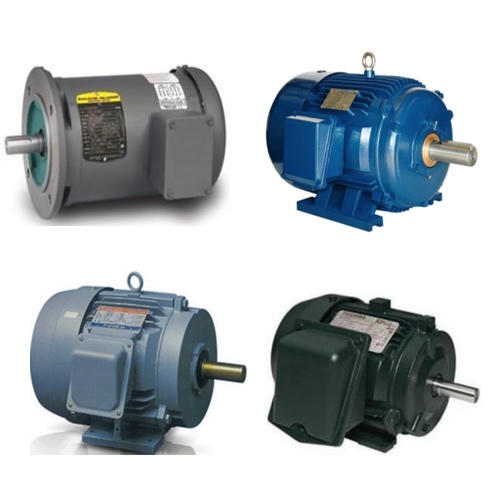

Enclosed three-phase motors are made to work in tough conditions. They are unfailingly reliable and efficient, and their components are safe from the dust, dampness, and impurities of the sort that would do them serious damage and drastically cut short their working lives.
These electric motors are housed in many different types of enclosures, including Totally Enclosed Fan-Cooled (TEFC) and Totally Enclosed Non-Ventilated (TENV). A TEFC motor features an external fan that cools the motor by blowing air over the motor's housing. This ensures not only that the motor itself will be cooled but also that any kind of contaminant will not enter the motor. A TENV motor does not have an external fan because hidden motors in applications like these can’t really carry an external fan around with them. Without the fan, they are still cooled because the motor itself is fitted with a finite surface area to dissipate heat.
Another vital advantage of totally enclosed motors is their flexibility. They come in many different sizes, enabling them to fit into all kinds of systems. They’re also quite powerful, which makes them particularly useful in settings where a single-phase motor just wouldn’t cut it. They are particularly useful for powering pumps and compressors. And they’re consistent: day after day, year after year, you can count on a three-phase motor to do its job.
Products
Sort By:
NAE PE587UZ-600-4C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 600 HP, 669.6 Amp
$39199.85
$60307.46
NAE PE587UZ-600-4C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-500-6C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 500 HP, 563.1 Amp
$33380.27
$51354.25
NAE PE587UZ-500-6C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-500-4C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 500 HP, 558.1 Amp
$29060.10
$44707.85
NAE PE587UZ-500-4C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-450-6C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 450 HP, 504.7 Amp
$30346.83
$46687.43
NAE PE587UZ-450-6C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-450-4C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 450 HP, 487.2 Amp
$26959.07
$41475.48
NAE PE587UZ-450-4C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-400-6C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 400 HP, 448.6 Amp
$28031.33
$43125.11
NAE PE587UZ-400-6C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-400-4C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 400 HP, 434.9 Amp
$23714.28
$36483.50
NAE PE587UZ-400-4C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-350-6C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 350 HP, 390.4 Amp
$25283.84
$38898.20
NAE PE587UZ-350-6C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE587UZ-350-4C-BB Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 350 HP, 378.5 Amp
$21551.07
$33155.50
NAE PE587UZ-350-4C-BB General Purpose Heavy Duty Cast Iron Electric Motor used for > Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; Suitable for 575V @ 1.0; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Sealed bearings through 215T frame, regreasable open bearings on 254T frame and above; insulated bearings on ODE available on 444T frame and above; 3-year warranty (extended warranty available)
NAE PE449TSC-300-2 Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 300 HP, 320 Amp
$13879.26
$21352.70
NAE PE449TSC-300-2 General Purpose Heavy Duty Cast Iron Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Regreasable open bearings; Insulated Bearing on ODE; 3-year warranty (extended warranty available)
NAE PE449TSC-250-2 Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 250 HP, 266 Amp
$11816.10
$18178.62
NAE PE449TSC-250-2 General Purpose Heavy Duty Cast Iron Electric Motor used for Pumps; Fans; Blowers; Compressors; Conveyors; Material handling equipment; Other industrial machinery; Damp, dusty or dirty environments; Suitable for use with variable frequency drives> Service factor: 1.15 @ 60 Hz; 1.0 @ 50 Hz; NEMA Design B Performance/ High starting torgue; F1/F2 reversible; Dual-drilled feet for mounting flexibility; Lifting provision. Class F insulation system; Class B rise at full load; Class H vacuum pressure impregnation (VPI) resin for all windings; Corrosion-resistant epoxy paint and stainless steel nameplate and zinc plated hardware; IP55 protection; Condensation drain with plugs. Regreasable open bearings; Insulated Bearing on ODE; 3-year warranty (extended warranty available)
NAE PE449TS-300-4 Electric Motor General Purpose Heavy Duty Cast Iron, 460 Volt, 3 Phase, 300 HP, 330 Amp
$13741.32
$21140.50
NAE PE449TS-300-4 General Purpose Heavy Duty Cast Iron Electric Motor used for > . .
