Code: 176172

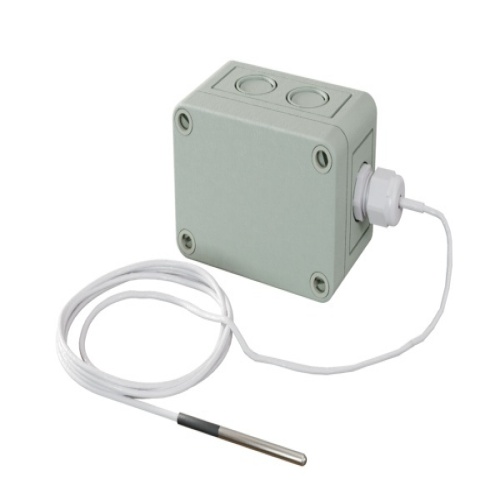

ACI 132110 A/TTM100-LTS-4-4X-10' Freezer,100 Ohm RTD
Normally In Stock
ACI 132110 Transmitter w/ 100 Ohm RTD (NIST Cert), 2" Freezer Probe 316SS, NEMA 4X Enclosure, 10', 4-20mA Output
Condition: New
Backordered with 10-12 week lead time$285.12
Sale Price
$237.60
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
The ACI RTD Freezer Series features a 3/16” diameter stainless steel probe with a 10 Foot or 30 Foot, 3 Conductor, 24 AWG Plenum rated jacketed Teflon cable. The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required. Optional “-GD” galvanized, “-BB” Aluminum, or “-4x” NEMA 4X weather proof plastic enclosures are available as well as NIST Certificates as referenced on the back of the product data sheet. A/TT Series transmitter accuracies must be calculated using both the calibration accuracy of the transmitter and the sensor accuracy over your applications operating temperature range. For higher accuracies, the A/TTM Series includes a secondary calibration process designed to eliminate most of the sensor error from the overall system accuracy. Any Freezer Transmitter can be used with the Single or Triple Point Glycol Kits when a Thermal Buffer (slower) response time is desired.
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Type
Freezer-100 Ohm
Features
The ACI RTD Freezer Series features a 4.76 mm (3/16 in) diameter stainless steel probe with a 3.05 m (10 ft) or 9.14 m (30 ft), 3 Conductor, 0.51 mm (24 AWG) Plenum rated jacketed Teflon cable
The sensor is designed to be used in Pharmaceutical, Liquid Nitrogen, Freezers, Refrigerators and Hydronic applications where a remote sensor is required
Optional “-GD” galvanized, “-BB” Aluminum, or “-4x” NEMA 4X weather proof plastic enclosures are available as well as NIST Certificates as referenced on the back of the product data sheet
A/TT Series transmitter accuracies must be calculated using both the calibration accuracy of the transmitter and the sensor accuracy over your applications operating temperature range
For higher accuracies, the A/TTM Series includes a secondary calibration process designed to eliminate most of the sensor error from the overall system accuracy
Any Freezer Transmitter can be used with the Single or Triple Point Glycol Kits when a Thermal Buffer (slower) response time is desired.
Code: 176172
ACI 132110 A/TTM100-LTS-4-4X-10' Freezer,100 Ohm RTD
$285.12
Sale Price
$237.60
