ACI 147220 A/TB-2.0-GLA
Normally In Stock
Code: 178888

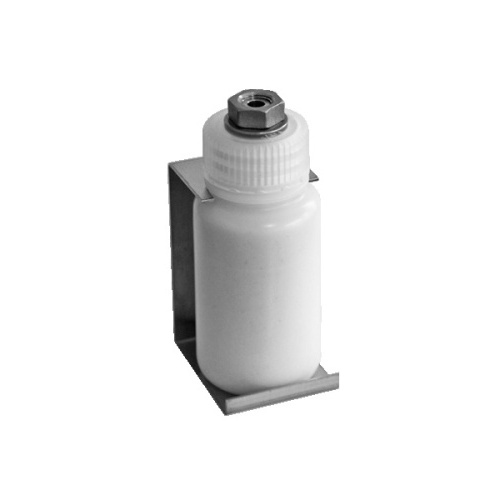

ACI 147220 Thermal Buffer, 2 oz Nalgene Bottle, 1 Sensing Point, Mounting Bracket, Glass Beads, Rated to -100C
Condition: New
Usually ships Same Day or Next Day$98.82
Sale Price
$82.35
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI Thermal Buffers counter rapid temperature fluctuations typically caused by doors opening in a walk-in freezer or cooler. The ACI Thermal Buffer Bottle comes with all the items needed to add a buffer to any new or existing sensor installation. All the parts include the food grade Glycol or Glass beads buffer, 304 series stainless steel Mounting bracket, stainless steel screws, Nalgene Bottle, and probe ftting. The 2oz Glycol bottle includes a PG7 Cable Gland with Neoprene Gasket (Seal) that will fit 3/16” to ¼” probe sizes. The 2oz Glass beads Thermal Buffer bottle includes a 316 stainless steel compression ftting that will fit 3/16” diameter sensing probes only. The 8.5oz bottle will fit 3/16” diameter sensing probes only.
Specifications
Manufacturer
ACI
Component
Thermal Buffer
Features
ACI Thermal Buffers counter rapid temperature fluctuations typically caused by doors opening in a walk-in freezer or cooler
The ACI Thermal Buffer Bottle comes with all the items needed to add a buffer to any new or existing sensor installation
All the parts include the food grade Glycol or Glass beads buffer, 304 series stainless steel Mounting bracket, stainless steel screws, Nalgene Bottle, and probe fitting
The 67 ml (2 oz) Glycol bottle includes a PG7 Cable Gland with Neoprene Gasket (Seal) that will fit 4.76 mm (3/16 in) to 6.35 mm (¼ in) probe sizes
The 67 ml (2 oz) Glass beads Thermal Buffer bottle includes a 316 stainless steel compression fitting that will fit 4.76 mm (3/16 in) diameter sensing probes only

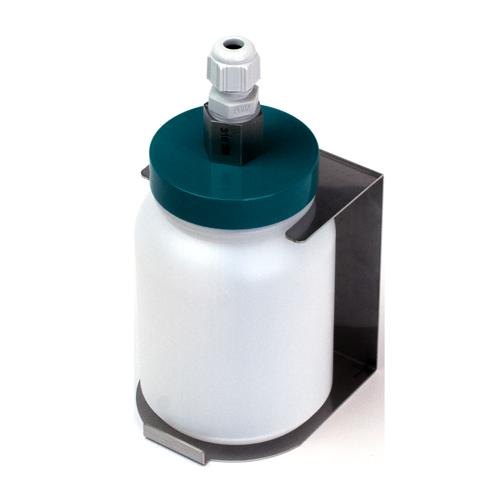

The 250 ml (8.5 oz) bottle will fit 4.76 mm (3/16 in) diameter sensing probes only
ACI’s Glycol buffer should be used in freezer/fridge applications, rated down to -40 °C(-40 °F)
ACI’s Glass Bead Buffer should be used in extreme low temperature applications, rated down to -100 °C (-148 °F)
The “-3PT” Triple Point Thermal buffer should be used in pharmaceutical or critical applications where multiple sensor redundancy is required with the 3rd sensing opening available for insertion of your NIST Certified standard or reference
For more information regarding the Glycol or Glass Bead Thermal Buffer Bottles and Accessories, or to discuss your application in more detail, please contact ACI.
