Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

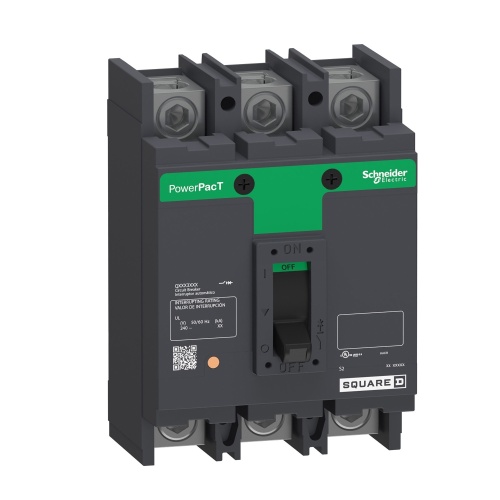

Schneider Electric QBP32200TM PowerPact Q - molded case circuit breaker - 3-pole - 10 kA - 240 V - 200 A
Normally In Stock
Code: 94121
Schneider QBP32200TM Circuit breaker 200 A 10 kA 240 V AC 80 % Lug OFF end, Stud with nut and washer ON end Unit mount CSA, IEC, UL Listed PowerPact Q B Thermal-magnetic 1200 A 2400 A 6.47 in (164.34 mm 4.5 in (114.30 mm 3.93 in (99.82 mm 3 240 V AC Lugs load, Terminal nut line A
Condition: New
CALL FOR LEAD TIME$967.68
Sale Price
$806.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider QBP32200TM Circuit breaker 200 A 10 kA 240 V AC 80 % Lug OFF end, Stud with nut and washer ON end Unit mount CSA, IEC, UL Listed PowerPact Q B Thermal-magnetic 1200 A 2400 A 6.47 in (164.34 mm 4.5 in (114.30 mm 3.93 in (99.82 mm 3 240 V AC Lugs load, Terminal nut line A
Specifications
Poles (Molded Case Breaker)
Three Pole
Amperage (Molded Case Breaker)
200 Amp
Interrupt Code (Molded Case Breaker)
B Interrupt Rating
Frame Type (Molded Case Breaker)
Q Frame
Mounting (Molded Case Breaker)
Unit Mount
Maximum Voltage (Molded Case Breaker)
240 VAC
Manufacturer
Schneider Electric
Manufacturer
Square D
Component
Molded Case Circuit Breaker
Interrupt Rating (Molded Case Breaker)
10 Ka 240 Volt
Features
Available in 2 or 3 pole design
Overcurrent protection and switching on AC systems
Common accessories across the range
