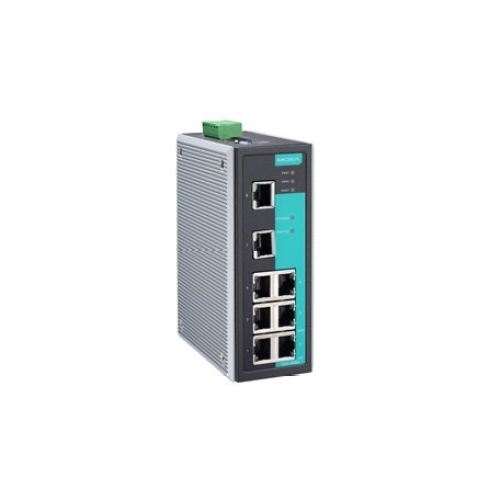

Moxa EDS-408A-MM-SC Managed Switch
Normally In Stock
Code: 8954
Moxa EDS-408A-MM-SC Entry-level managed Ethernet Switch (Din Rail Mount) with 8 ports including 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Multi-mode ports (100BaseFX) with SC connectors, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1469.98
Sale Price
$1224.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-408A-MM-SC Entry-level managed Ethernet Switch with 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Multi-mode ports (100BaseFX) with SC connectors, 0 to 60 C operating temperature. Entry-level 8-port managed Ethernet switches designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A-408A switches. Class 1, Div. II Rated. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Fiber Ports Multi Mode Fast (100 Mbps)
2 SC Multi Mode
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Temperature Range
32F To 140F
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Multi
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch All Ports
6 Fast Copper RJ45-2 Fast Fiber SC Multi
Switch Model
Moxa EDS
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
PROFINET or EtherNet/IP enabled by default (PN or EIP models)
Supports MXstudio for easy, visualized industrial network management
