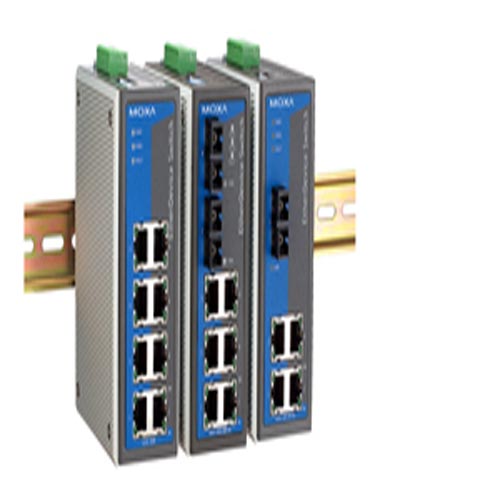

Moxa EDS-508A-SS-SC-T Managed Switch
Normally In Stock
Code: 8940
Moxa EDS-508A-SS-SC-T Entry-level managed Ethernet Switch (Din Rail Mount) with 8 ports including 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Single-mode ports (100BaseFX) with SC connectors, Extended Temp -40 to 75 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$3194.92
Sale Price
$2662.43
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-508A-SS-SC-T Managed Ethernet Switch with 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Single-mode ports (100BaseFX) with SC connectors, -40 to 75 C operating temperature. The EDS-505A-508A are standalone 16-port managed Ethernet Switches. Suitable for any harsh industrial environment. With their advanced Turbo Ring and Turbo Chain technology (recovery time < 20 ms) and RSTP-STP (IEEE 802.1w-D), the EDS-505A-508A switches increase the reliability and availability of your industrial Ethernet network.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Temperature Range
-40F To 167F
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Switch Management
Managed
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Single
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Single
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Fiber Ports Single Mode Fast (100 Mbps)
2 SC Single Mode
Switch All Ports
6 Fast Copper RJ45-2 Fast Fiber SC Single
Switch Copper Ports Fast (100 Mbps)
3 RJ45 Ports
Switch Model
Moxa EDS
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and STP/RSTP/MSTP for network redundancy
TACACS+, SNMPv3, IEEE 802.1X, HTTPS, and SSH to enhance network security
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
Supports MXstudio for easy, visualized industrial network management
