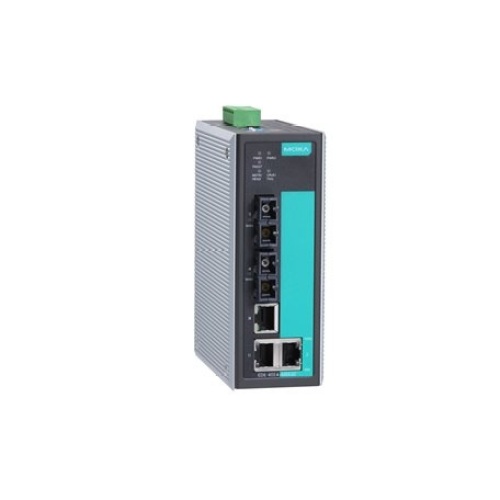

Moxa EDS-405A-SS-SC Managed Switch
Normally In Stock
Code: 8923
Moxa EDS-405A-SS-SC Entry-level managed Ethernet Switch (Din Rail Mount) with 5 ports including 3 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Single-mode ports (100BaseFX) with SC connectors, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1469.98
Sale Price
$1224.98
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Moxa EDS-405A-SS-SC Entry-level managed Ethernet Switch with 3 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Single-mode ports (100BaseFX) with SC connectors, 0 to 60 C operating temperature. Entry-level 8-port managed Ethernet switches designed especially for industrial applications. The switches support a variety of useful management functions, such as Turbo Ring, Turbo Chain, ring coupling, port-based VLAN, QoS, RMON, bandwidth management, port mirroring, and warning by email or relay. The ready-to-use Turbo Ring can be set up easily using the web-based management interface, or with the DIP switches located on the top panel of the EDS-405A-408A switches. Class 1, Div. II Rated. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Voltage Input
12 VDC
Switch Management
Managed
Switch Temperature Range
32F To 140F
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Single
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Single
Switch Total Ports
5
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Fiber Ports Single Mode Fast (100 Mbps)
2 SC Single Mode
Switch Copper Ports Fast (100 Mbps)
3 RJ45 Ports
Switch Model
Moxa EDS
Switch All Ports
3 Fast Copper RJ45-2 Fast Fiber SC Single
Manufacturer
Moxa
Component
Managed Ethernet Switch
Features
Turbo Ring and Turbo Chain (recovery time < 20 ms @ 250 switches), and RSTP/STP for network redundancy
IGMP Snooping, QoS, IEEE 802.1Q VLAN, and port-based VLAN supported
Easy network management by web browser, CLI, Telnet/serial console, Windows utility, and ABC-01
PROFINET or EtherNet/IP enabled by default (PN or EIP models)
Supports MXstudio for easy, visualized industrial network management
