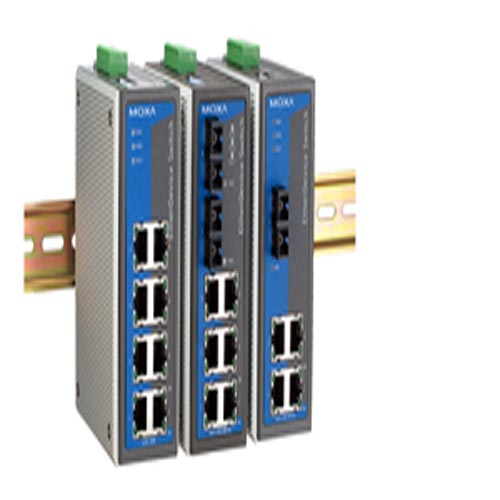

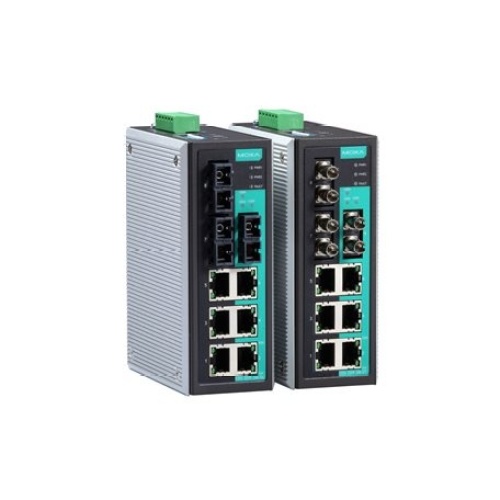

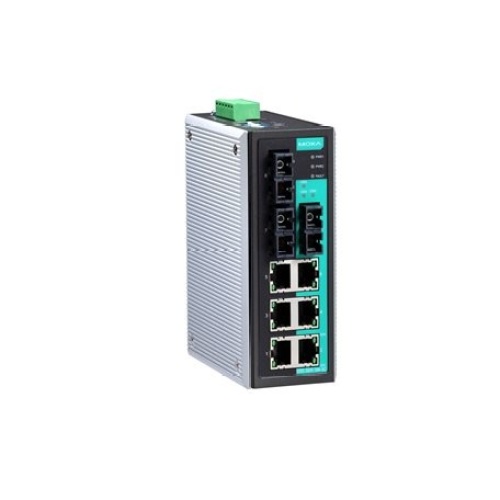

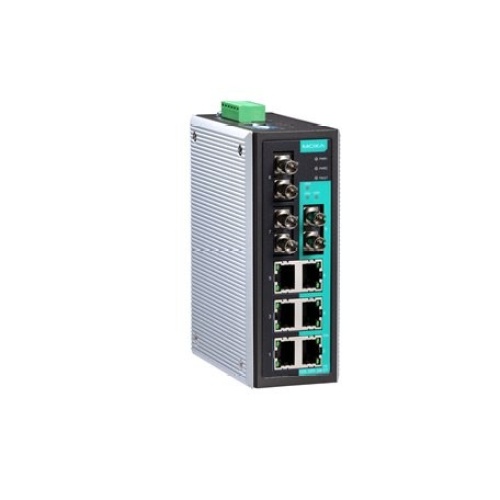

Moxa EDS-309-3M-ST Unmanaged Ethernet Switch
Normally In Stock
Code: 8757
Moxa EDS-309-3M-ST Unmanaged Ethernet Switch (Din Rail Mount) with 9 ports including 6 Fast Copper ports RJ45 (100 Mbps), and 3 Fast Fast Fiber Multi-mode ports (100BaseFX) with ST connectors, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1019.63
Sale Price
$849.69
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-309-3M-ST Unmanaged Ethernet Switch with 6 Fast Copper ports RJ45 (100 Mbps), and 3 Fast Fast Fiber Multi-mode ports (100BaseFX) with ST connectors, 0 to 60 C operating temperature. Switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2-ATEX). The switches comply with FCC, TUV, UL, and CE standards. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Power Connection
Wire Terminals
Switch Fiber Ports Multi Mode Fast (100 Mbps)
3 ST Multi Mode
Switch Voltage Input
12 VDC
Switch Temperature Range
32F To 140F
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber ST Port Multi
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber ST Port Multi
Min. # Fast Fiber SC Ports
At Least 3 Fast Fiber ST Port Multi
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch Total Ports
9
Switch Model
Moxa EDS
Switch All Ports
6 Fast Copper RJ45-3 Fast Fiber ST Multi
Manufacturer
Moxa
Component
Unmanaged Ethernet Switch
Features
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)
