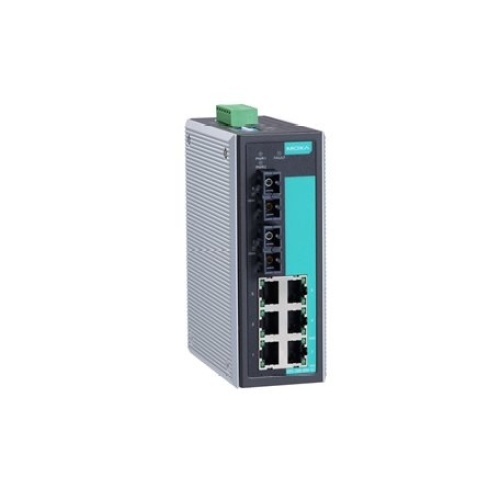

Moxa EDS-308-SS-SC-T Unmanaged Ethernet Switch
Normally In Stock
Code: 8702
Moxa EDS-308-SS-SC-T Unmanaged Ethernet Switch (Din Rail Mount) with 8 ports including 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Single-mode ports (100BaseFX) with SC connectors, Extended Temp -40 to 75 C operating temperature. Metal housing with IP30 protection.
Condition: New
Usually ships Same Day or Next Day$1391.35
Sale Price
$1159.46
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-308-SS-SC-T Unmanaged Ethernet Switch with 6 Fast Copper ports RJ45 (100 Mbps), and 2 Fast Fiber Single-mode ports (100BaseFX) with SC connectors, -40 to 75 C operating temperature. The built-in relay warning function alerts network engineers when power failures or port breaks occur, and the switches are designed for harsh industrial environments, such as in hazardous locations (Class I, Div. 2-ATEX). The switches comply with FCC, TUV, UL, and CE standards. Can be installed easily on a DIN-Rail or in a distribution box.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Temperature Range
-40F To 167F
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Single
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Single
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Total Ports
8
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch Fiber Ports Single Mode Fast (100 Mbps)
2 SC Single Mode
Switch All Ports
6 Fast Copper RJ45-2 Fast Fiber SC Single
Switch Model
Moxa EDS
Manufacturer
Moxa
Component
Unmanaged Ethernet Switch
Features
Relay output warning for power failure and port break alarm
Broadcast storm protection
-40 to 75°C wide operating temperature range (-T models)
