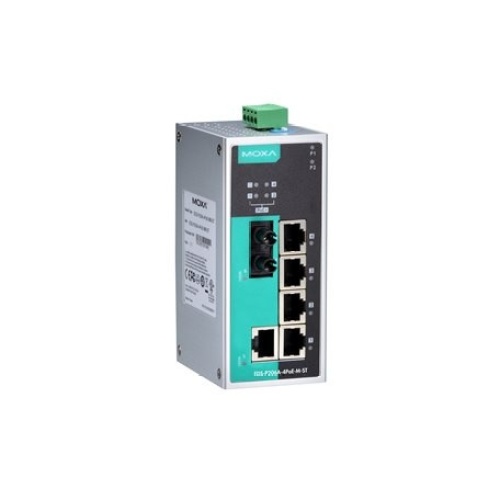

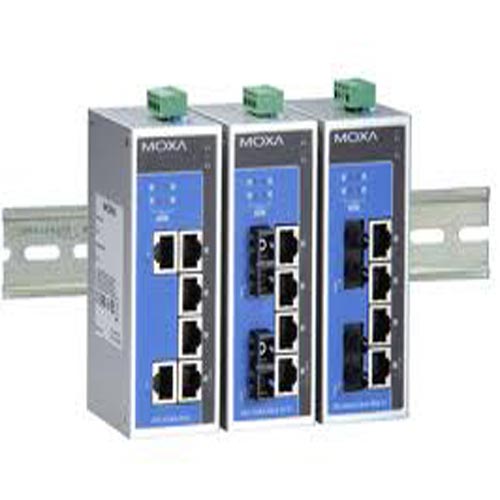

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Moxa EDS-P206A-4PoE-SS-SC Unmanaged Ethernet Switch
Normally In Stock
Code: 8697
Moxa EDS-P206A-4PoE-SS-SC Unmanaged Ethernet Switch (Din Rail Mount) with 6 ports including 4 Fast PoE RJ45 ports, and 2 Fast (100 Mbps) Fiber Single-mode ports with SC connector, 0 to 60 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1855.68
Sale Price
$1546.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-P206A-4PoE-SS-SC Unmanaged Ethernet Switch with 6 ports including 4 Fast PoE RJ45 ports, and 2 Fast (100 Mbps) Fiber Single-mode ports with SC connector, 0 to 60 C operating temperature. The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet Switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. Built-in relay warning function alerts network engineers when power failures or port breaks occur. Also available in an extended temperature model.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Min. # Fast Fiber SC Ports
At Least 1 Fast Fiber SC Port Single
Min. # Fast Fiber SC Ports
At Least 2 Fast Fiber SC Port Single
Switch POE Ports
4 POE Fast Ports
Switch Power Redundancy
Redundant Power Inputs
Switch Copper Ports Fast (100 Mbps)
4 RJ45 Ports
Switch Total Ports
6
Switch Fiber Ports Single Mode Fast (100 Mbps)
2 SC Single Mode
Switch All Ports
6 Fast Copper RJ45-2 Fast Fiber SC Single
Switch Model
Moxa EDS
Switch All Ports
4 Fast POE Copper RJ45-2 Fast Fiber SC Single
Manufacturer
Moxa
Component
Unmanaged Ethernet Switch
Features
IEEE 802.3af/at compliant PoE and Ethernet combo ports
Up to 30 W output per PoE port
12/24/48 VDC redundant power inputs
Intelligent power consumption detection and classification
Redundant dual VDC power inputs
-40 to 75°C operating temperature range (-T models)
