Moxa EDS-P206A-4PoE-T Unmanaged Ethernet Switch
Normally In Stock
Code: 8662

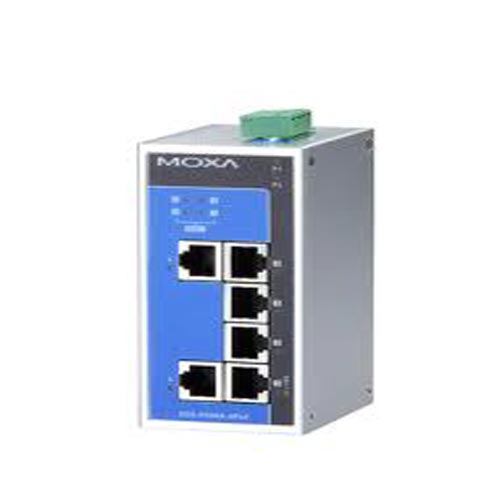

Moxa EDS-P206A-4PoE-T Unmanaged Ethernet Switch (Din Rail Mount) with 6 ports including 6 Fast Copper ports RJ45 (100 Mbps) of which 4 are PoE ports, -40 to 75 C operating temperature.
Condition: New
Usually ships Same Day or Next Day$1056.76
Sale Price
$880.63
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-P206A-4PoE-T Unmanaged Ethernet Switch with 6 ports including 6 Fast Copper ports RJ45 (100 Mbps) of which 4 are PoE ports, -40 to 75 C operating temperature. The EDS-P206A-4PoE switches are smart, 6-port, unmanaged Ethernet Switches supporting PoE (Power-over-Ethernet) on ports 1 to 4. The switches are classified as power source equipment (PSE), and when used in this way, the EDS-P206A-4PoE switches enable centralization of the power supply and provide up to 30 watts of power per port. Built-in relay warning function alerts network engineers when power failures or port breaks occur.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 6 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Ruggedized
Extended Temperature
Switch POE Ports
4 POE Fast Ports
Switch Power Redundancy
Redundant Power Inputs
Switch Copper Ports Fast (100 Mbps)
6 RJ45 Ports
Switch Total Ports
6
Switch All Ports
6 Fast Copper RJ45
Switch Model
Moxa EDS
Switch All Ports
4 Fast POE Copper RJ45-2 Fast Copper RJ45
Manufacturer
Moxa
Component
Unmanaged Ethernet Switch
Features
IEEE 802.3af/at compliant PoE and Ethernet combo ports
Up to 30 W output per PoE port
12/24/48 VDC redundant power inputs
Intelligent power consumption detection and classification
Redundant dual VDC power inputs
-40 to 75°C operating temperature range (-T models)
