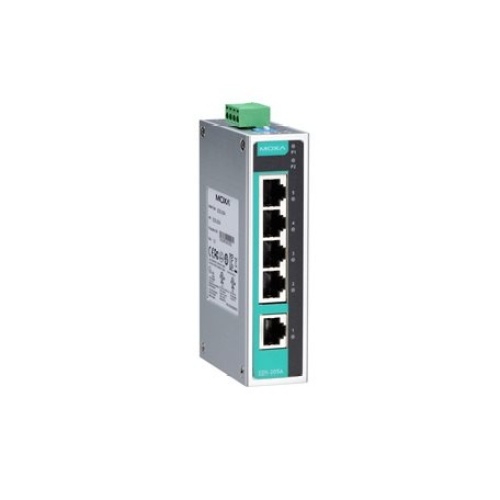

Moxa EDS-205A-T Unmanaged Ethernet Switch
Normally In Stock
Code: 8655
Moxa EDS-205A-T Unmanaged Ethernet Switch (Din Rail Mount) with din rail mount (Extended Temperature) with 5 ports including 5 Fast Copper ports RJ45 (100 Mbps), Extended Temperature of -40F to 167F. Aluminum housing with IP30 protection. 30 x 115 x 70 mm (1.18 x 4.52 x 2.76 in)
Condition: New
Usually ships Same Day or Next Day$295.38
Sale Price
$246.15
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Moxa EDS-205A-T Unmanaged Ethernet Switch with 5 ports including 5 Fast Copper ports RJ45 (100 Mbps), -40 to 75 C operating temperature. The EDS-205A-208A switches provide 12-24-48 VDC (9.6 to 60 VDC), 18 to 30 VAC redundant power inputs that can be connected simultaneously to live AC-DC power sources. These switches have been designed for harsh industrial environments.
Specifications
Min. # Fast Copper Ports
At Least 1 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 2 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 3 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 4 Fast Copper RJ45 Port
Min. # Fast Copper Ports
At Least 5 Fast Copper RJ45 Port
Switch Management
Unmanaged
Switch Mounting
Din Rail
Switch Voltage Input
24 VDC
Switch Voltage Input
48 VDC
Switch Power Connection
Wire Terminals
Switch Temperature Range
-40F To 167F
Switch Voltage Input
12 VDC
Switch Ruggedized
Extended Temperature
Switch Voltage Input
18-30 VAC
Switch Total Ports
5
Switch Copper Ports Fast (100 Mbps)
5 RJ45 Ports
Switch All Ports
5 Fast Copper RJ45
Switch Power Redundancy
Redundant Power Inputs
Switch POE Ports
No POE Ports
Switch Model
Moxa EDS
Manufacturer
Moxa
Component
Unmanaged Ethernet Switch
Features
10/100BaseT(X) (RJ45 connector), 100BaseFX (multi/single-mode, SC or ST connector)
Redundant dual 12/24/48 VDC power inputs
IP30 aluminum housing
Rugged hardware design well suited for hazardous locations (Class I Div. 2/ATEX Zone 2), transportation (NEMA TS2/EN 50121-4), and maritime environments (DNV/LR/ABS/NK)
-40 to 75°C wide operating temperature range (-T models)
Compliant with PROFINET Conformance Class A
