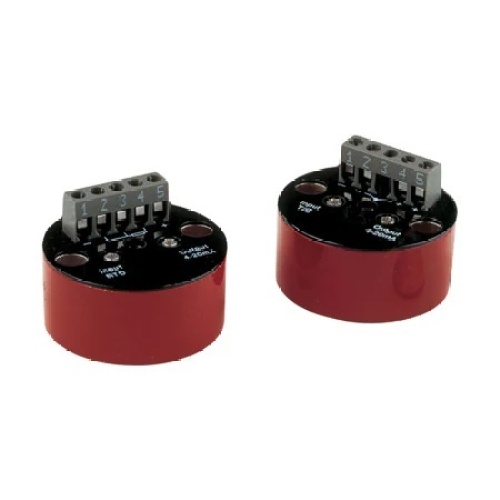

Omega TX253 Thermocouple Transmitter
Normally In Stock
Code: 830468
Omega TX253 Thermocouple Transmitter
Condition: New
Usually ships Same Day or Next Day$241.97
Sale Price
$201.64
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thermocouple Transmitter, DC Supply, TC (R) 0 °C to 1750 °C, Type S 0 °C to 1750 °C I/P, 4 mA to 20 mA O/P, Scaling Charge, TX250 Series, Each
Specifications
Component
Thermocouple Transmitter
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Voltage
Conditioner Supply Voltage
10-36 Vdc
Conditioner Number Input Signals
3 Input Signals
Conditioner Input Signal Type
RTD
Conditioner Input Signal Type
Thermocouple
Features
Accuracy± 0.1 %
Accuracy Detail
0.1% of span
Calibration
2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers
Cold Junction Compensation
±0.9°C (±1.6°F) typical (3°C [5.4°F] for R and S) for 0 to 60°C
Diameter
44 mm
Dimensions Note
33 H x 44 mm diameter including the terminal block
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Height
33 mm
Housing Material
Diecast zinc alloy
Humidity Range
5 to 95% RH, non-condensing
Input Type
Thermocouple
Linearity
<0.08%
Mounting Note
5 mm ID suitable for 8-32 screw
Mounting Screw Hole Diameter
5 mm
Operating Temperature, Max
70 °C
Operating Temperature, Min
-20 °C
Output Detail
4 to 20 mA, 28 mA limited
Output Load
(Vsupply - 10)/0.02
Probe Length
0 mm
Sensor Type
Transmitter
Setup Controls
2 “Zero” DIP switches, 3 “Span” DIP switches and 2 fine tuning trimmers
Sheath Material
N/A
Span, Min
600°C
Supply Power Effects
<0.001%/1V
Supply Power Note
10 to 36 Vdc (24 Vdc recommended)
Supply Power Type
DC
Supply Voltage
10 to 36 Vdc
Temperature Input Range
R: 0 to 1750 °C
S: 0 to 1750 °C
Temperature Stability
<0.01% of span/1°C
Weight
50 g
