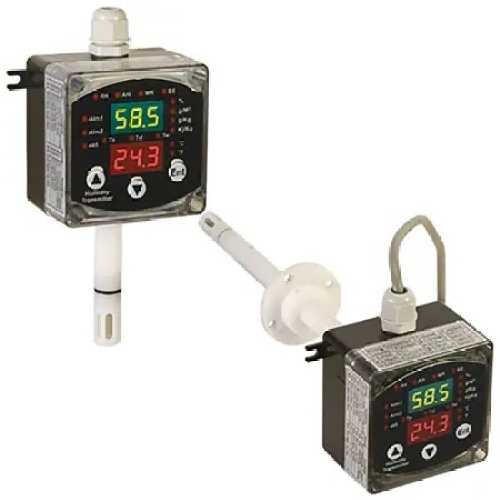

Omega HX402W TRANSMITTER
Normally In Stock
Code: 790112
Omega HX402W TRANSMITTER
Condition: New
Usually ships Same Day or Next Day$1438.33
Sale Price
$1198.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Relative Humidity/Temperature Transmitter with LED Display, Signal Conditioner, 10 % to 90 %, -40 °C to 100 °C, 12 Vdc to 32 Vdc, 4 mA to 20 mA, Wall Mount, HX400 Series, Each
Specifications
Conditioner Output Signal Range
4-20 Ma
Component
Relative Humidity/Temperature Transmitter
Manufacturer
Omega Engineering
Conditioner Supply Voltage
12-32 Vdc
Features
Single and Dual Output Models Available
Single Channel 4 - 20 mA Output for RH
Dual Channel 4 - 20 mA Outputs for RH and Temperature
Two Points Field Calibration
Accuracy±0.02 mA
Accuracy DetailAccuracy @ 23°C and Scaleable Measurement Range: Without field Calibration
Calibration OptionFront 3 pushbutton with dual high bright 3-digit LED module
Data InterfaceN/A
Dew Point Temperature, Max2 °C
Dew Point Temperature, Min-2 °C
Display TypeDual 3 Digit LED (Green)
Electrical Output4 to 20 mA
Enclosure RatingsIP40, IP65, NEMA Type 4
FilterStainless Steel wire mesh
0.05 mm
Height56 mm
Length80 mm
Materials, WettedPolycarbonate, POM
Current, MaxDual 4 to 20 mA
Media CompatibilityAir, Argon, Carbon dioxide, Helium, Hydrogen, Nitrogen, Non-Corrosive Dry Gases, Oxygen
Operating Temperature, Max100 °C
Operating Temperature, Min-40 °C
Pressure, Min0 psi
Probe Diameter15.5 mm
Reading Rate1 /sec
Relative Humidity0 to 100% RH
Relative Humidity Accuracy± 2% RH
Repeatability± 1% RH
Resolution0.1% RH
Response Time10 sec
Supply Power NoteLoop Power: 12 to 32 Vdc
dual 4 to 20 mA loop current
reverse polarity protected (Vloop = 24 Vdc, Tamb = 23 ± 2°C, Rload = 250 Ω)
Supply Power TypeLoop Powered
Supply Voltage12 to 32 Vdc
Temperature Measurement, Max70 °C
Temperature Measurement, Min-20 °C
Weight250 g
Wet Bulb Temperature, Max80 °C
Wet Bulb Temperature, Min-20 °C
Width110 mm
