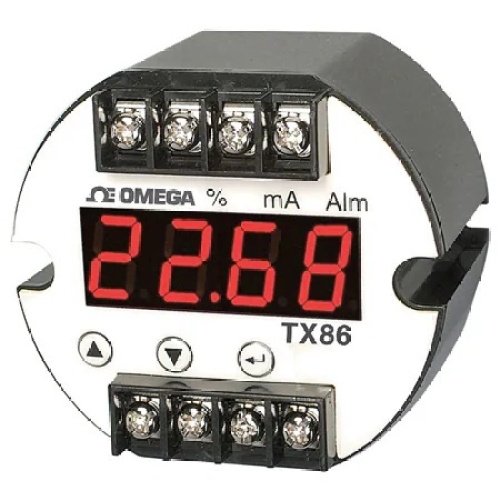

Omega TX86 Temperature Transmitter
Normally In Stock
Code: 830472
Omega TX86 Temperature Transmitter
Condition: New
Usually ships Same Day or Next Day$1215.55
Sale Price
$1012.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Temperature Transmitter, Programmable, Loop Supply, -200 °C to 850 °C I/P, mA O/P, Universal I/P & Process O/P Class, 1000 V Isolation, Pushbutton, Each
Specifications
Component
Temperature Transmitter
Conditioner Supply Voltage
12-30 Vdc
Features
Accuracy± 0.2 %
Accuracy Detail
± 0.2% of full scale input
Cold Junction Compensation
±2°C
Diameter
62 mm
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Height
42 mm
Housing Material
Plastic, Polycarbonate
Humidity Range
20 to 90% RH non-condensing
Input Resistance
0 to 2000 Ω
Mounting
Head-mounted
Operating Temperature, Max
70 °C
Operating Temperature, Min
-20 °C
Output Load
50 x (Vsupply – 12V) Ω
Probe Length
0 mm
Programmable Functions
alarm, °C/°F, Cold Junction, control action, Dampening, Deadband, offset, Range, Sensor Burnout Indication
Resolution
2 μA
Response Time
1 sec with dampening off
Sensor Type
Transmitter
Setup Controls
3 pushbuttons on front
Sheath Material
N/A
Span, Min
50°C
Stability
± 0.15%/ year (Long Term Stability)
Storage Temperature, Max
70 °C
Storage Temperature, Min
-20 °C
Supply Current
30/150 µA ± 2%
Supply Power Note
12 to 30 Vdc, LED indicator reverse polarity protected 60 Vdc
Supply Power Type
DC
Supply Voltage
12 to 30 Vdc
Temperature Input Range
0 to 260 °C
Weight
80 g
