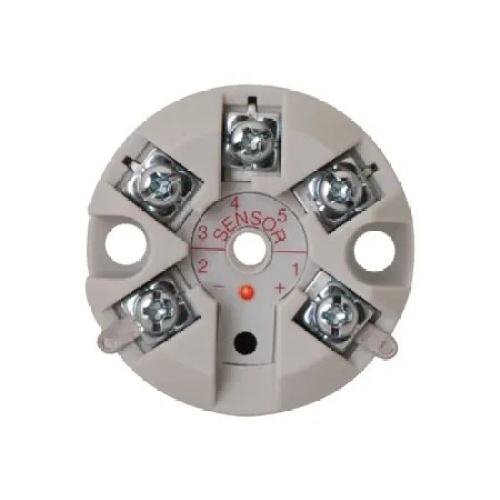

Omega TX206TH Thermistor Temperature Transmitter
Normally In Stock
Code: 830467
Omega TX206TH Thermistor Temperature Transmitter
Condition: New
Usually ships Same Day or Next Day$210.00
Sale Price
$175.00
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Thermistor Temperature Transmitter, Head Mount, Loop Supply, 4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, Pushbutton/Software, Each
Specifications
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Voltage
Conditioner Supply Voltage
10-30 Vdc
Conditioner Number Input Signals
3 Input Signals
Conditioner Input Signal Type
RTD
Conditioner Input Signal Type
Thermocouple
Component
Thermistor Temperature Transmitter
Features
Accuracy± 5 µA
Accuracy Detail
(mA output/2000) or 5 uA (whichever is the greater)
Calibration
Pushbutton/Software
Diameter
43 mm
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Height
21 mm
Humidity Range
10 to 90% RH non condensing
Input Accuracy
± 0.2 %
Operating Temperature, Max
85 °C
Operating Temperature, Min
-40 °C
Output Load
[(Vsupply-10)/21] kΩ
Probe Length
0 mm
Programmable Functions
offset, Range, Sensor Burnout Indication, sensor type
Response Time
1 sec
Self Heating Effect
0.2 uA/V
Sensor Type
Transmitter
Setup Controls
Pushbutton/Software
Sheath Material
N/A
Span, Min
5°C
Start Up Time
I out < 4 mA during start up
Storage Temperature, Max
90 °C
Storage Temperature, Min
-50 °C
Supply Power Type
DC
Supply Voltage
10 to 30 Vdc
Temperature Input Range
N/A
Thermal Effects
± 2 uA/°C, ± 0.02 %/°C
Warm Up Time
1 min to full accuracy
Weight
31 g
