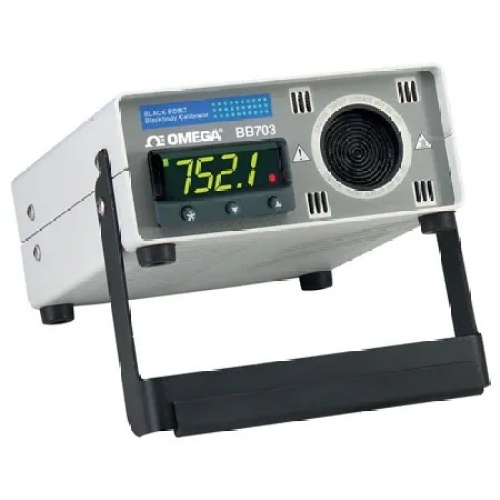

Omega BB703-230VAC-C2 Temperature Calibrator
Normally In Stock
Code: 801728
Omega BB703-230VAC-C2 Temperature Calibrator
Condition: New
Usually ships Same Day or Next Day$4575.90
Sale Price
$3813.25
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Blackbody Calibrator, Infrared, Miniature, ± 1.4 °C (2.5 °F), 2.5 % rdg Accuracy, 10 °C to 400 °C (20 °F to 752 °F), 230 Vac, RS 232, Portable, BB703 Series, Each
Specifications
Component
Temperature Calibrator
Manufacturer
Omega Engineering
Features
Calibrates from Ambient +10 to 400°C (Ambient +20 to 752°F)
Portable Miniature Design
Built-in Digital 1/32 DIN Temperature Controller
Calibrates Infrared Instruments Quickly and Accurately
Accuracy± 1.4 °C
Additional Features 1Portable
Cavity Emissivity0.95
Control ModePID Control
Display TypeLED
Frequency50/60 Hz
Height56 mm
Installation CategoryII
Internal Sensing ElementPlatinum RTD, Class A, 100Ω, alpha = 0.00385
Length155 mm
Operating Temperature, Max40 °C
Operating Temperature, Min0 °C
Power Consumption175 W
Process Temperature, Max400 °C
Process Temperature, Min10 °C
Resolution0.1°
Stability±0.3°C
Weight1.09 kg
Width127 mm
