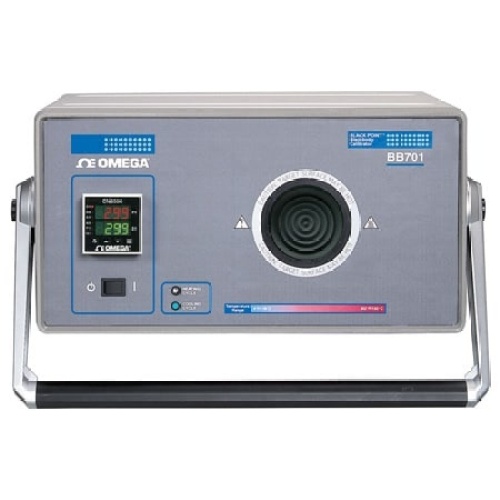

Omega BB701-230VAC Temperature Calibrator
Normally In Stock
Code: 801723
Omega BB701-230VAC Temperature Calibrator
Condition: New
Usually ships Same Day or Next Day$7684.39
Sale Price
$6403.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Blackbody Calibrator, Infrared, Hot/Cold, ± 0.8 °C (1.8 °F) Accuracy, -18 °C to 149 °C (0 °F to 300 °F), 230 Vac, RS 232, Portable, BB701 Series, Each
Specifications
Component
Temperature Calibrator
Manufacturer
Omega Engineering
Features
Model BB701 Calibrates from -18 to 149°C (0 to 300°F )
Portable Rugged Design
Calibrates Infrared Pyrometers Quickly and Accurately
Built in Digital PID Autotune Temperature Controller with Temperature Readout
Accuracy± 0.8 °C (± 1.44 °F)
Accuracy Detail±0.8°C +1 digit (±1.4°F ) (worst case), ±0.3°C (±0.6°F) [over entire scale]
Additional Features 1Portable
Calibration Reference SensorPlatinum RTD, 100 Ω, 0.00385
Cavity Emissivity0.95
Control ModePID Control
Cool-Down Time Note5 min, from ambient to -18°C (0°F)
Data InterfaceRS232
Display TypeLED
Frequency50/60 Hz
Height19.5 mm
Installation CategoryII
Internal Sensing ElementPlatinum RTD, 100 Ω, 0.00385
Length36.5 mm
Operating Temperature, Max43 °C
Operating Temperature, Min4.4 °C
Operating Temperature Note4.4 to 29.4°C (40 to 85°F) [target plate reaches 0°F]
4.4 to 43°C (40 to 110°F) [target plate reaches 11.8°F]
Power Consumption175 W
Process Temperature, Max149 °C
Process Temperature, Min-18 °C
RTD Accuracy± 0.375 °C
Stability± 0.6°C
Stability Note± 0.6°C (± 1.2°F) or less
Target Size63.5
Warm Up Time5 min
Warm-Up Time Note5 min, from ambient to 149°C (300°F)
Width35.5 mm
