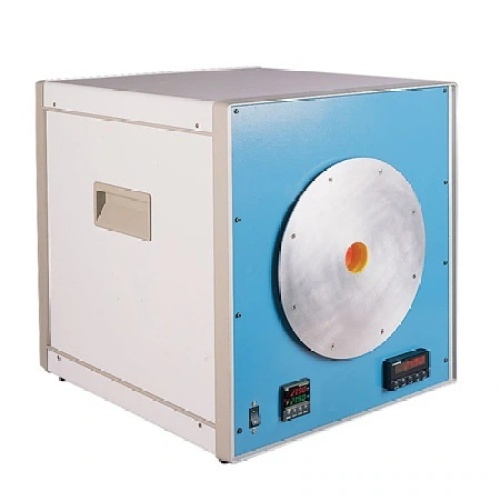

Omega BB705-230VAC Temperature Calibrator
Normally In Stock
Code: 801731
Omega BB705-230VAC Temperature Calibrator
Condition: New
Usually ships Same Day or Next Day$25349.84
Sale Price
$21124.87
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Blackbody Calibrator, Infrared, Very High Temperature, ± 1 °C (1.8 °F), 0.25 % rdg Accuracy, 100 °C to 1046 °C (212 °F to 1915 °F), 230 Vac, RS 232, Portable, BB705 Series, Each
Specifications
Component
Temperature Calibrator
Manufacturer
Omega Engineering
Features
Very High Temperature Blackbody Calibrator
Model BB705 Calibrates from 100 to 1046°C (212 to 1915°F)
Built-In NIST Traceable Reference Temperature Display
Large 44.5 mm (1.75') Aperture
Accuracy± 1 °C (± 1.8 °F)
Accuracy Detail±0.25% of reading
±1°C
Additional Features 1Portable
Cavity Emissivity0.99
Cavity Opening Size44.5
Control ModePID Control
Data InterfaceRS232
Display TypeLED
Frequency50/60 Hz
Height520 mm
Internal Sensing ElementPlatinum Thermocouple
Length600 mm
Operating Temperature, Max35 °C
Operating Temperature, Min0 °C
Process Temperature, Max1046 °C
Process Temperature, Min100 °C
Stability± 0.4°C
Stability Note0.4°C (0.7°F) per 8-hour period
Target Size44.5
Warm Up Time80 min
Warm-Up Time Note80 minutes from 100°C to 1000°C
Width566 mm
