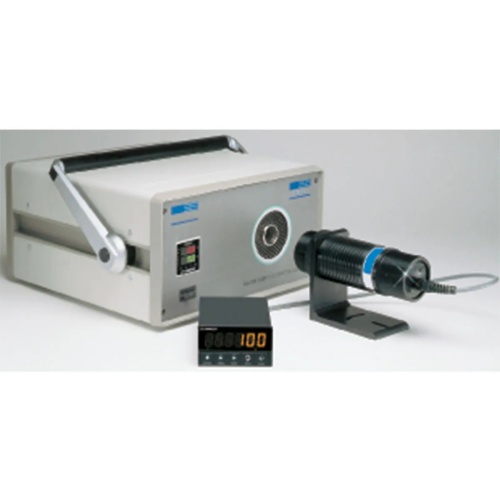

Omega BB-4A-230VAC Temperature Calibrator
Normally In Stock
Code: 801721
Omega BB-4A-230VAC Temperature Calibrator
Condition: New
Usually ships Same Day or Next Day$9198.25
Sale Price
$7665.21
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Blackbody Calibrator, Infrared, High Temperature, ± 1 °C (1.8 °F), 0.25 % rdg Accuracy, 100 °C to 982 °C (212 °F to 1800 °F), 240 Vac, RS 232, Portable, BB-4A Series, Each
Specifications
Component
Temperature Calibrator
Manufacturer
Omega Engineering
Features
Calibrate from 100 to 982°C (212 to 1800°F)
Portable Rugged Design
Built in Digital PID Autotune Temperature Controller with Temperature Readout
NIST Traceable Calibration Certificate Included with Three Data Points
Accuracy± 1 °C (± 1.8 °F)
Accuracy Detail±1°C, ±0.25% (±1.8°F ±0.25%) rdg
Additional Features 1Portable
Cavity Emissivity0.99
Cavity Opening Size22
Control ModePID Control
Data InterfaceRS232
Display TypeLED
Frequency50/60 Hz
Height190 mm
Internal Sensing ElementType K Thermocouple
Length264 mm
Operating Temperature, Max50 °C
Operating Temperature, Min0 °C
Power Consumption400 W
Process Temperature, Max982 °C
Process Temperature, Min100 °C
Stability±0.15°C
Stability Note±0.15°C or less
Target Size21.56
Warm Up Time1.0 hrs
Warm-Up Time Note1.0 hr from ambient to 982°C (1800°F)
Width410 mm
