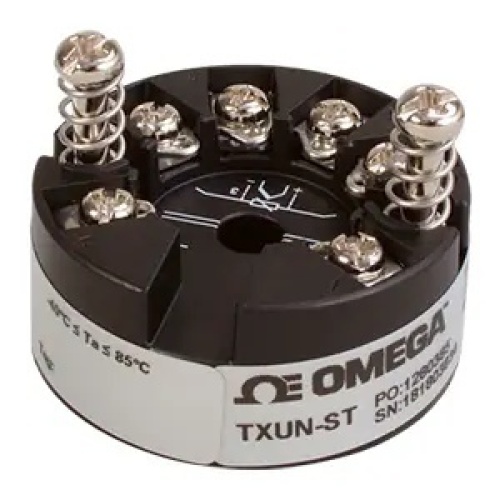

Omega TXUN-ST 2-wire programmable transmitter & RTD, T
Normally In Stock
Code: 790258
Omega TXUN-ST 2-wire programmable transmitter & RTD, T
Condition: New
Usually ships Same Day or Next Day$473.59
Sale Price
$394.66
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Programmable Transmitter, Hockey Puck, 2-Wire, DC Supply, -12 mV to 800 mV I/P, 4 mA to 20 mA O/P, Universal I/P & Process O/P Class, 1500V Isolation, TXUN-KIT Communication Tool Kit, Each
Specifications
Component
Transmitter
Conditioner Output Signal Range
4-20 Ma
Manufacturer
Omega Engineering
Conditioner Supply Voltage
7.2-35 Vdc
Features
Accuracy± 0.05 %
Accuracy Detail
≤ ±0.05% of span
ADC Resolution
20 bit
Approvals
"Authority Requirements: EMC: 2014/30/EU RoHS: 2011/65/EU EAC: TR-CU 020/2011"
Cable Resistance
5 Ω
Calibration
TXUN-KIT Communication Tool Kit
Calibration Temperature, Max
28 °C
Calibration Temperature, Min
20 °C
Cold Junction Compensation
< ±1.0°C
DAC Resolution
16 bit
Diameter
44 mm
Drop
7.2 Vdc
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
EMC Standard
NAMUR NE 21
Enclosure Ratings
IP00, IP68
Height
20.2 mm
Humidity Range
Up to 95% non-condensing
Input Control Signal
-12 to 800 mV
Input Resistance
10 MΩ
Input Type
Thermocouple, RTD, Resistance, Voltage
Isolation
1500 V
Offset
50% of selected max. value
Operating Temperature, Max
85 °C
Operating Temperature, Min
-40 °C
Output Detail
Min. Signal Range: 16 mA NAMUR NE43 Upscale/Downscale: 23 mA/3.5 mA
Output Load
≤ (Vsupply - 7.2)/0.023 Ω
Power Dissipation
25 mW to 0.8 W
Probe Length
0 mm
Programmable Functions
Loop Link and HART
Response Time
1 to 60 sec
RTD Type
Ni100,Pt100
Sensor Break Detection
3.5 to 23 mA
Sensor Current
0.2 mA
Sheath Material
N/A
Signal/Noise Ratio
> 60 dB
Stability
≤ 0.01% of span/100 Ω (Load Stability)
Supply Power Effects
< 0.005% of span/Vdc
Supply Power Type
DC
Supply Voltage
7.2 to 35 Vdc
Temperature Coefficient
≤ ±0.01%/°C
Temperature Input Range
N/A
Thermocouple Type
B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Update Rate, Max
440 ms
Vibration
IEC 60068-2-6
2 to 25 Hz: ±1.6 mm
25 to 100 Hz: ±4 g
Warm Up Time
5 min
Weight
50 g
Wiring/Connector Table
2-, 3-, or 4-Wire
