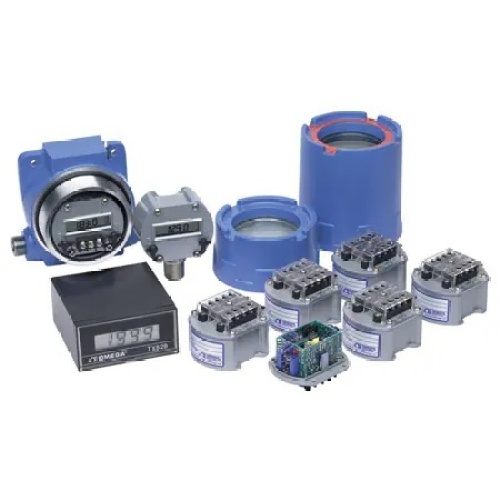

Omega TX1502A-K TYPE K TRANSMITTER - EOL
Normally In Stock
Code: 790236
Omega TX1502A-K TYPE K TRANSMITTER - EOL
Condition: New
Usually ships Same Day or Next Day$730.10
Sale Price
$608.42
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Isolated Transmitter, TC (K/T/C), 4 mA to 20 mA O/P, for Demanding Applications, Turndown Ratio to 10:1, TX1500 Series, Each
Specifications
Component
Transmitter
Conditioner Output Signal Range
4-20 Ma
Conditioner Output Signal Type
Current
Manufacturer
Omega Engineering
Features
ApprovalsRoHS 2 Compliant
Compliance
9 to 50 Vdc
Diameter
74 mm
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Enclosure Ratings
IP66, NEMA Type 4X
Height
53 mm
Hysteresis
± 0.1%
Isolation
1500 Vrms
Long Term Stability
± 0.2% of zero suppression(6-month)
Materials
Zamak Zinc Alloy, Fluorosilicone
Mounting
Rail Mount
Number Of Wires
2
Operating Temperature, Max
85 °C
Operating Temperature, Min
-40 °C
Output Signal
Current
Power Supply Rejection
0.01% of span/V
Protection
Termination Protection: Standard: Screw terminal barriers plus barrier strip cover
Relative Humidity
0 to 100% (sealed case)
Repeatability
± 0.1%
Response Time
400 ms
Shock
55 g, half sine, 9 to 13 ms duration
Span Error
± 0.2% of span, Due to 50°C Change in Transmitter Temperature
Storage Temperature, Max
125 °C
Storage Temperature, Min
-55 °C
Supply Power
9 to 50V
Supply Power Type
Loop Powered
Turndown Ratio
10:1
Vibration
1.52 mm (0.06") double amplitude, 10 to 80 Hz cycled
Water Tight Proof Pressure
5 psi
Weight
380 g
Zero/Balance Error
± 0.2% of zero suppression, Due to 50°C Change in Transmitter Temperature
