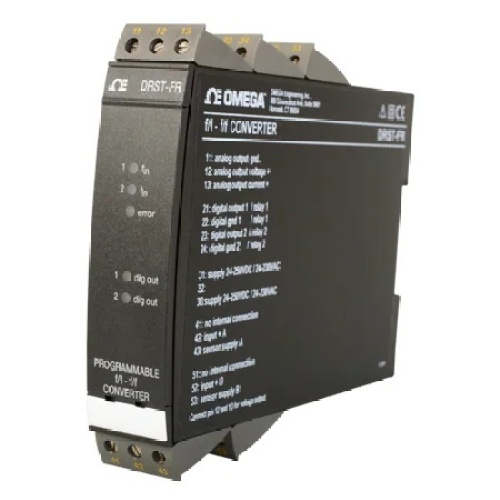

Omega DRST-FR Programmable f/I-f/f converter & Analog
Normally In Stock
Code: 790196
Omega DRST-FR Programmable f/I-f/f converter & Analog
Condition: New
Usually ships Same Day or Next Day$819.50
Sale Price
$682.92
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, AC/DC Supply, 0 KH to 20 kHz I/P, Frequency I/P & Process O/P Class, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
0-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Output Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Supply Voltage
21.6-253 Vac
Conditioner Supply Voltage
19.2-300 Vdc
Features
Configurable with a standard PC and TXUN-KIT communications unit
Pulse Calculator
Frequency Generator
Galvanic Isolation
Approvals NoteEMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Electrical Output0 to 20 mA
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Frequency Measurement Range0 to 20 kHz
Fuse Rating400 mA SB / 250 Vac
Height109 mm
Isolation3750 Vac
Length130 mm
Linearity Error< 0.1% of span
Load ResistanceVoltage Output : ≥ 500 kΩ, Current Output : ≤ 600 Ω
MountingDIN Rail 46277
Noise Calibration>60 dB
Operating Temperature, Max60 °C
Operating Temperature, Min-20 °C
Optional Power Note0 to 999 s
Output ValueProcess
Power Consumption3.5 W, Internal - 3 W
Relative Humidity<95% RH
Screw Terminal Torque0.5 Nm
Signal Dynamics Output16 bit
StabilityLoad Stability: ≤0.01% of span/100 Ω
Supply Power TypeAC/DC
Update Rate20 ms
Warm Up Time1 min
Weight240 g
Width23.5 mm
