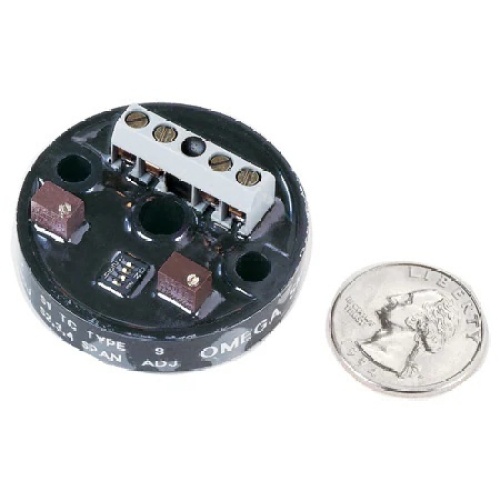

Omega TX901 T/C TX J/K/T/E/R/S NOCE
Normally In Stock
Code: 790257
Omega TX901 T/C TX J/K/T/E/R/S NOCE
Condition: New
Usually ships Same Day or Next Day$597.89
Sale Price
$498.24
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Miniature Transmitter, Field Rangeable, 2-Wire, Isolated, Loop Supply, 4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, Trim Pot/Switch, TX900 Series, Each
Specifications
Component
Transmitter
Conditioner Output Signal Range
4-20 Ma
Manufacturer
Omega Engineering
Conditioner Supply Voltage
9-35 Vdc
Features
Accuracy± 0.1 %
Accuracy Detail
±0.1% FS (includes effects of linearity, hysteresis and repeatability)
Bandwidth
3 dB @ 3Hz
Calibration
Trimpot/Switch
Diameter
4.45 cm
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Hysteresis
±0.1%
Linearity
±0.1%
Loop Resistance, Max
(Vs-8.5V)/0.02A
Operating Temperature, Max
85 °C
Operating Temperature, Min
-25 °C
Probe Length
0 cm
Repeatability
±0.1%
Sensor Type
Transmitter
Setup Controls
Trimpot/Switch
Sheath Material
N/A
Storage Temperature, Max
125 °C
Storage Temperature, Min
-65 °C
Supply Power Note
9 to 35 Vdc
24 Vdc recommended
Supply Power Type
DC
Supply Voltage
9 to 35 Vdc
Zero Setting Adjustable Range
±25% mV span centered around 0 mV (or °C) RTD models ±40°F
