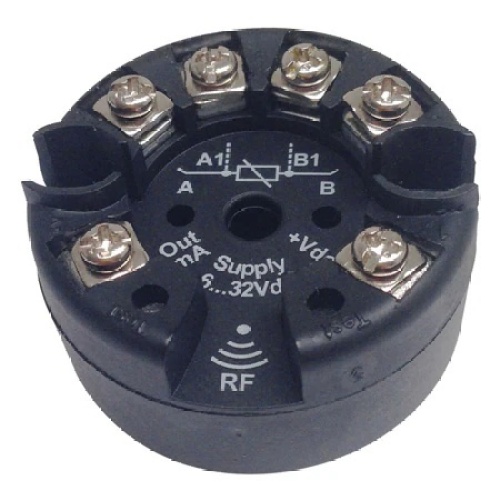

Omega TX401 HEAD MOUNT RTD INPUT TRANSMITTER RFID
Normally In Stock
Code: 790231
Omega TX401 HEAD MOUNT RTD INPUT TRANSMITTER RFID
Condition: New
Usually ships Same Day or Next Day$94.75
Sale Price
$78.96
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Miniature Temperature Transmitter, Loop Supply, Head Mount, RTD, -200 °C to 800 °C I/P, 4 mA to 20 mA O/P, Temperature I/P & Process O/P Class, RFID Programmer, TX400 Series, Each
Specifications
Component
Temperature Transmitter
Conditioner Output Signal Range
4-20 Ma
Manufacturer
Omega Engineering
Conditioner Supply Voltage
6-32 Vdc
Features
ApprovalsCE,EN 61000-6-4, EN 61000-6-2
Calibration
Wireless with RFID technology (NFC)
Diameter
45 mm
Electrical Connection
Screw Terminal
Electrical Output
4 to 20 mA
Enclosure Ratings
IP20, NEMA Type 1
Height
23 mm
Housing Material
Nylon (PA66)
Humidity Range
30 to 90% RH non condensing
Lead Resistance, Max
20 Ω
Mounting
DIN/B Head
Noise Rejection
50 to 60 Hz
Operating Temperature, Max
85 °C
Operating Temperature, Min
-40 °C
Probe Length
0 mm
Programmable Functions
offset, Range, Sampling Frequency, Sensor Burnout Indication, sensor type
Protection
Current 30 mA
Resolution
1 μA
Response Time
600 ms
Sampling Time
300 ms
Sensor Type
Transmitter
Setup Controls
Wireless with RFID technology (NFC)
Sheath Material
N/A
Software
Windows® XP/7/8 (32-bit and 64-bit), Windows 10 (64-bit)
Storage Temperature, Max
85 °C
Storage Temperature, Min
-40 °C
Supply Power Note
2-wire loop powered
operating range 6 to 32 Vdc
Supply Power Type
DC
Supply Voltage
6 to 32 Vdc
Temperature Input Range
Pt100: -200 to 800 °C
Pt1000: -200 to 800 °C
Ni100: -50 to 170 °C
Transmission Error, Max
0.1% or 0.2°C
Weight
30 g
