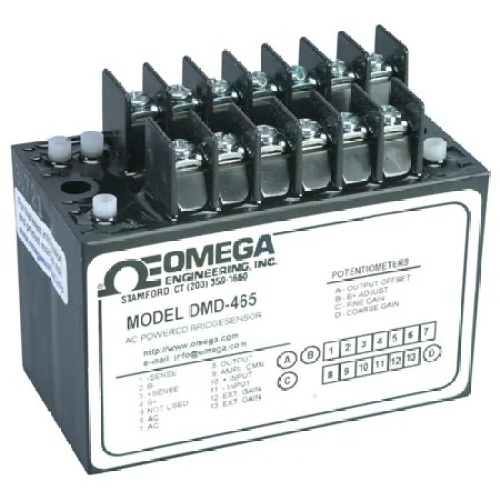

Omega DMD-465 STRAIN GAGE AMPLIFIER
Normally In Stock
Code: 790216
Omega DMD-465 STRAIN GAGE AMPLIFIER
Condition: New
Usually ships Same Day or Next Day$993.47
Sale Price
$827.89
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Strain Amplifier/Conditioner Module, 10 mV to 50 mV I/P, 110 Vac O/P, for Bridge, Load Cell, Transducers, FGPR, DMD-460 Series, Each
Specifications
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Component
Strain Amplifier/Conditioner Module
Conditioner Output Signal Range
± 10 Vdc
Features
Bridge Excitation 4 to 15 Vdc up to 120 mA
Works with Bridge Circuits of 120 Ohms or Higher
Adjustable Gain and Offset
6-Wire Bridge Connections
Capacitance50 pF
Common Mode Voltage± 15V
Compliance Voltage10 Vdc
Excitation Voltage NoteExcitation Voltage Range: 4 to 15 Vdc
Current Output: 120 mA max
Line and Load Regulation: (0 to 100 mA) 0.05% max
Output Noise: 0.5 mVrms
Gain Range40 to 250
Height73 mm
Impedance Output1 Ω
Input Bias Current30 nA
Input Range10 mV to 50 mV
Input Resistance4_to_20_ma_1_to_5_vdc
Input TypeVoltage
Length96 mm
Linearity± 0.05%
Loop Resistance, Max500 Ω
Operating Temperature, Max70 °C
Operating Temperature, Min0 °C
Output Detail± 10 Vdc @ 2 kΩ Load
Sensor Excitation4 to 15 Vdc
Storage Temperature, Max85 °C
Storage Temperature, Min-25 °C
Supply Power115 Vac
Supply Power NoteStandard 115 Vac or optional 220 Vac ± 10% 50/60 Hz or 10 to 36 Vdc 0.7 A @ 10V, 0.17 A @ 36V at maximum excitation load
Supply Power TypeAC
Temperature CoefficientGain: 200 ppm/°C
Weight510 g
Width51 mm
