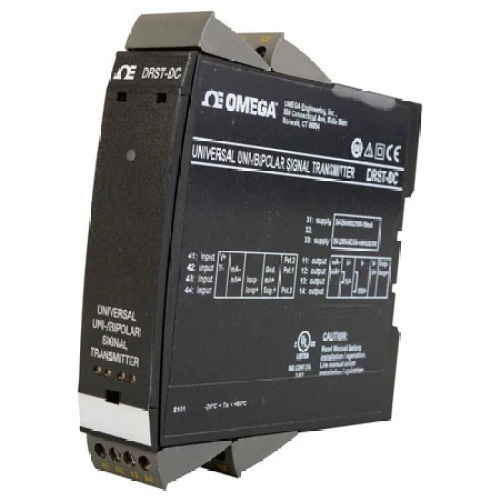

Omega DRST-DC Universal Uni-/Bipolar DC Signal Transmi
Normally In Stock
Code: 790197
Omega DRST-DC Universal Uni-/Bipolar DC Signal Transmi
Condition: New
Usually ships Same Day or Next Day$463.82
Sale Price
$386.52
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, AC/DC Supply, ± 100 mA, ± 300 Vdc I/P, Process I/P & O/P Class, Each
Specifications
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-23 Ma
Conditioner Supply Voltage
21.6-253 Vac
Conditioner Supply Voltage
19.2-300 Vdc
Conditioner Number Input Signals
3 Input Signals
Features
Measures Uni-/Bipolar DC Current and Voltage Signals
Passive/Active Current Output and Buffered Voltage Output
Extremely Good Signal Dynamics for Spans from 25 mV to 300 VDC
Fast < 20 ms Response Time and Excellent 0.05% Accuracy
ApprovalsUL, RoHS
Approvals NoteUL: UL 508/CC22.2 no. 14, LVD: 2014/35/EU, EMC: 2014/30/EU, RoHS: 2011/65/EU
Bandwidth> 40 Hz
Calibration Temperature, Max28 °C
Calibration Temperature, Min20 °C
Display TypeProgrammer
Electrical Output0 to 23 mA
EMC Immunity NoteNAMUR NE21, A Criterion, Burst: < ±1% of span Conducted Emission, class A: 150 kHz to 10 MHz
EMC StandardNAMUR NE 21
Enclosure RatingsIP20
Height109 mm
Isolation2.3 kVac
Length104 mm
Load ResistanceCurrent Output: 1000 Ω/± 20 V @ ±20 mA, Voltage Output: 2 kΩ, Buffered Voltage Output: > 500 kΩ min
MountingDIN Rail 35 mm Standard, EN 60715
Noise Calibration>60 dB
Operating Temperature, Max60 °C
Operating Temperature, Min-20 °C
Output ValueProcess
Power Consumption2.5 W
Power Dissipation2.0 W
Relative Humidity<95% RH
Screw Terminal Torque0.5 Nm
Signal Dynamics Input24 bit
Signal Dynamics Output18 bit
StabilityLoad Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max85 °C
Storage Temperature, Min-20 °C
Supply Power TypeAC/DC
Voltage LossInput Voltage Drop: 0.6 V @ 20 mA nom.
Weight250 g
Width23.5 mm
Wire Gauge26 to 14 AWG
