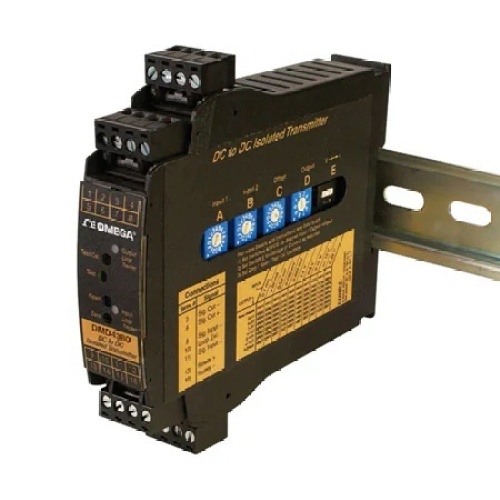

Omega DMD4380 DC TO DC SIGNAL CONDITIONER
Normally In Stock
Code: 790192
Omega DMD4380 DC TO DC SIGNAL CONDITIONER
Condition: New
Usually ships Same Day or Next Day$795.10
Sale Price
$662.58
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, AC Supply, 0 V to 50 V DC, 0 mA to 50 mA Vdc I/P, Process I/P & O/P Class, DMD4380 Series, Each
Specifications
Conditioner Number Input Signals
2 Input Signals
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-10 Vdc
Conditioner Supply Voltage
80-265 Vac
Conditioner Supply Voltage
85-300 Vdc
Features
Standard DIN Rail Mounting
Fast Setup - Over 100 I/O Ranges
Removable Connectors
Full 3-Way Isolation
CMRR120 db minimum
Electrical ConnectionScrew Terminal
Electrical Output0 to 10 Vdc
Enclosure RatingsIP40
Height117 mm
Isolation1200 Vrms minimum, 3-way isolation, power to input, power to output and input to output
Length122 mm
MountingDIN Rail 35 mm Standard
OffsetZero Offset (Tare): ± 100% of span in 15 % increments
Operating Temperature, Max60 °C
Operating Temperature, Min-10 °C
Output Ripple<10 mV rms
Output ValueProcess
Supply Power TypeAC/DC
Temperature StabilityBetter than ±0.02% of span per °C
Weight150 g
Width22.5 mm
Wire Gauge14 AWG
Amplify , Convert, or Scale Process Signals
Isolate Single-Ended (Common Ground) PLC Inputs
Interface Process Signals with Panel Meters, PLCs, Recorders, Data Acquisition, DCS, and SCADA Systems
