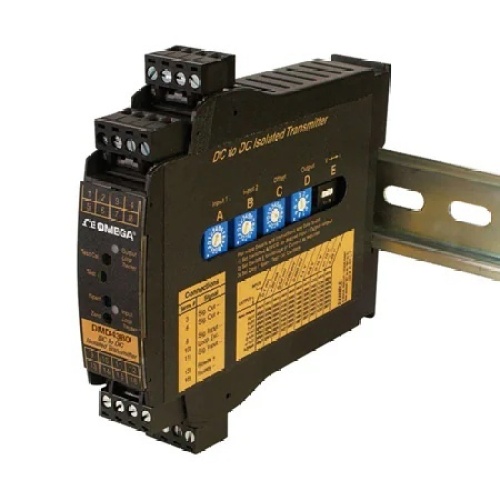

Omega DMD4380-DC LOW VOLTAGE SIGNAL CONDITIONER
Normally In Stock
Code: 790193
Omega DMD4380-DC LOW VOLTAGE SIGNAL CONDITIONER
Condition: New
Usually ships Same Day or Next Day$752.60
Sale Price
$627.17
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, DC Supply, 0 V to 50 V DC, 0 mA to 50 mA Vdc I/P, Process I/P & O/P Class, DMD4380 Series, Each
Specifications
Conditioner Number Input Signals
2 Input Signals
Component
Signal Conditioner
Conditioner Supply Voltage
9-30 VDC
Conditioner Supply Voltage
10-32 VAC
Conditioner Output Signal Type
Current
Conditioner Input Signal Type
Current
Conditioner Output Signal Type
Voltage
Conditioner Input Signal Type
Voltage
Manufacturer
Omega Engineering
Conditioner Output Signal Range
0-10 Vdc
Features
Standard DIN Rail Mounting
Fast Setup - Over 100 I/O Ranges
Removable Connectors
Full 3-Way Isolation
CMRR120 db minimum
Electrical ConnectionScrew Terminal
Electrical Output0 to 10 Vdc
Enclosure RatingsIP40
Height117 mm
Isolation1200 Vrms minimum, 3-way isolation, power to input, power to output and input to output
Length122 mm
MountingDIN Rail 35 mm Standard
OffsetZero Offset (Tare): ± 100% of span in 15 % increments
Operating Temperature, Max60 °C
Operating Temperature, Min-10 °C
Output Ripple<10 mV rms
Output ValueProcess
Supply Power TypeAC/DC
Temperature StabilityBetter than ±0.02% of span per °C
Weight150 g
Width22.5 mm
Wire Gauge14 AWG
Amplify , Convert, or Scale Process Signals
Isolate Single-Ended (Common Ground) PLC Inputs
Interface Process Signals with Panel Meters, PLCs, Recorders, Data Acquisition, DCS, and SCADA Systems
