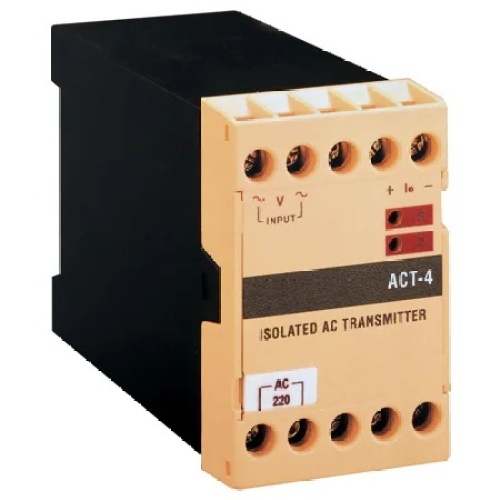

Omega DRA-ACT-4V-3 4-WIRE AC VOLTAGE INPUT SIGCON
Normally In Stock
Code: 790155
Omega DRA-ACT-4V-3 4-WIRE AC VOLTAGE INPUT SIGCON
Condition: New
Usually ships Same Day or Next Day$499.06
Sale Price
$415.88
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
DIN Rail Signal Conditioner, AC Supply, 0 V to 400 V AC I/P, 4 mA to 20 mA O/P, DRA-ACT-4V Series, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Supply Voltage
115 VAC
Conditioner Output Signal Type
Current
Manufacturer
Omega Engineering
Conditioner Input Signal Type
AC Voltage
Features
DRA-ACT-4I Series ACCurrent Input
DRA-ACT-4V Series ACVoltage Input
± 0.1% Accuracy
Isolated
Accuracy± 0.1 %
Accuracy Detail±0.1% of span typical (2 to 100% of span) for pure sinusoidal input
Additional Features 14-Wire AC Powered Design
CMRR122 dB typical
117 dB min
Electrical Output4 to 20 mA
Height119 mm
Input TypeAC Voltage
Isolation4000 Vrms/ 1min
Lead Compensation Error< 0.03% for full change
Length73 mm
Loop Resistance750 Ω @ nominal ac supply
600 Ω @ minimum ac supply
MaterialsPolycarbonate
MountingDIN Rail 35 mm Standard or Wall Mount
Number of Inputs1
Operating Temperature, Max70 °C
Operating Temperature, Min0 °C
Output RippleBetter than 0.1% of span RMS
Output SignalCurrent
Output ValueProcess
Relative Humidity5 to 95% RH, noncondensing
Response Time220 msec
Span Adjustment± 25 %
Storage Temperature, Max85 °C
Storage Temperature, Min-25 °C
Supply Power Effects40 to 500 Hz
Supply Power Note115 Vac ± 15%, 50/60 Hz standard
230 Vac ± 15%, 50/60 Hz optiona
Supply Power TypeAC
Temperature Stability0.02%/1°C
Weight0.4 kg
Width45 mm
Zero Setting Adjustable Range±35% min
