Code: 790158

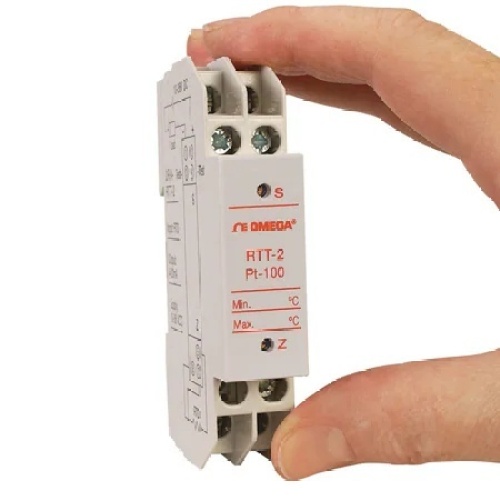

Omega DRA-RTT-2 NONISOLATED RTD INPUT SIG COND
Normally In Stock
Omega DRA-RTT-2 NONISOLATED RTD INPUT SIG COND
Condition: New
Usually ships Same Day or Next Day$246.35
Sale Price
$205.29
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
DIN Rail Signal Conditioner, RTD Type, AC Supply, 30 °C to 810 °C I/P, Temperature I/P & Process O/P Class, Each
Specifications
Conditioner Number Input Signals
1 Input Signal
Conditioner Output Signal Range
4-20 Ma
Component
Signal Conditioner
Conditioner Output Signal Type
Current
Manufacturer
Omega Engineering
Conditioner Supply Voltage
10-36 Vdc
Features
±0.1% Accuracy
Linearized
Field Rangeable
Non-Isolated
Electrical Output4 to 20 mA
Enclosure RatingsIP20, IP40
Excitation Current< 1 mA
Height90 mm
IsolationNone
Lead Compensation Error< ±0.03% of span for full change
Length58 mm
Loop ResistanceRmax (Ω) = (Vsupply - 10)/0.02
MaterialsPolycarbonate
MountingDIN Rail 35 mm Standard
Operating Temperature, Max70 °C
Operating Temperature, Min-20 °C
Output ValueProcess
Relative Humidity5 to 95% RH, noncondensing
Resistance Tolerance< ±0.05°C/10 Ω lead resistance
Storage Temperature, Max85 °C
Storage Temperature, Min-30 °C
Supply Power TypeDC
Temperature Stability<±0.015% of span/°C
Weight70 g
Width17.5 mm
Zero Setting Adjustable Range-55 to 202°C
