Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 779611

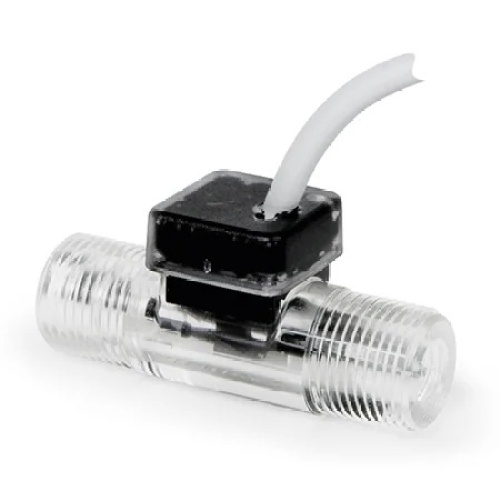

Omega BV2000TRN250B TURBINE FLOW METER, 0.26 TO 6.6 GPM
Normally In Stock
Omega BV2000TRN250B TURBINE FLOW METER, 0.26 TO 6.6 GPM
Condition: New
Usually ships Same Day or Next Day$163.44
Sale Price
$136.20
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Vision Turbine Flow Meter, NSF/ANSI Certified, Liquid, 1 LPM to 25 LPM, 3/8 ", NPT Male, ± 3 %, Amplified Square Wave, Trogamid, PTFE, Graphite, BV2000 Series, Each
Specifications
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
5- 24 VDC
Component
Turbine Flow Meter
Features
Compact size
Measurement in any meter orientation
Operating pressure up to 362.50 psi (25 bar)
Temperature range of –4…212° F (–20…100° C)
Accuracy± 3 %
ApprovalsKTW, W270, FDA - 21 CFR 175.300
Electrical OutputAmplified Square Wave
Filter20 to 40 microns Recommended
Materials, WettedGraphite, PA12 Ferrite, PA12 Trogemid, PTFE
Media CompatibilityLiquids
Operating Temperature, Max100 °C
Operating Temperature, Min-20 °C
Output DetailMax. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector
Output SignalDC Pulse
Repeatability<0.50%
Repeatability Note<0.50% under the same operating conditions
Supply Current8 mA
Supply Voltage5 to 24 Vdc
Viscosity Range0 to 16 cSt
