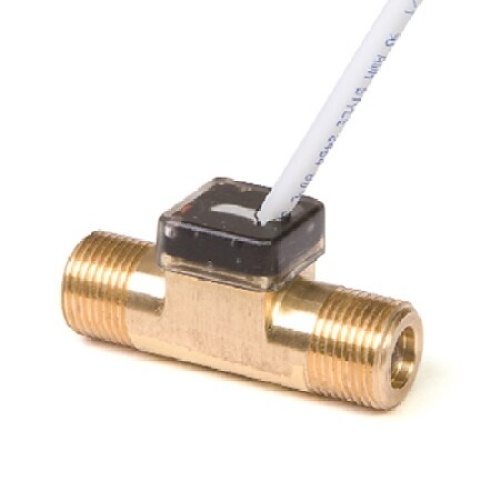

Omega BV2000BRN250B TURBINE FLOW METER, 0.8 TO 6.6 GPM
Normally In Stock
Code: 779601
Omega BV2000BRN250B TURBINE FLOW METER, 0.8 TO 6.6 GPM
Condition: New
Usually ships Same Day or Next Day$252.31
Sale Price
$210.26
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Vision Turbine Flow Meter, Low Cost, Liquid, 0.8 GPM to 6.6 GPM (3 LMP to 25 LMP), 3/8 ", NPT Male, ± 3 %, Amplified Square Wave, Brass, PTFE, Graphite, BV2000 Series, Each
Specifications
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
(Instrument-Sensor) Supply Voltage
5- 24 VDC
Component
Turbine Flow Meter
Features
Compact size
Measurement in any meter orientation
Operating pressure up to 362.50 psi (25 bar)
Temperature range of –4…212° F (–20…100° C)
Accuracy± 3 %
ApprovalsKTW, W270, FDA - 21 CFR 175.300
Burst Pressure2900 psi Maximum
Electrical OutputAmplified Square Wave
Filter20 to 40 microns Recommended
Materials, WettedBrass, Graphite, PA12 Ferrite, PTFE
Media CompatibilityLiquids
Operating Pressure, Max360 psi
Operating Temperature, Max100 °C
Operating Temperature, Min-20 °C
Output DetailMax. 20 mA (Pull-up resistor required. See wiring diagram in User Manual.), Output (Hz): NPN sinking open collector
Output SignalDC Pulse
Process Connection Size3/8 in
Repeatability<0.50%
Repeatability Note<0.50% under the same operating conditions
Supply Current8 mA
Supply Voltage5 to 24 Vdc
Viscosity Range0 to 16 cSt
Weight15 g
