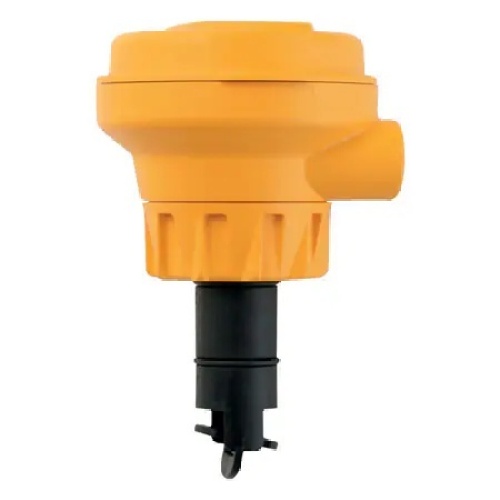

Omega FPB151 FLW SNSR 4-20MA CE
Normally In Stock
Code: 779466
Omega FPB151 FLW SNSR 4-20MA CE
Condition: New
Usually ships Same Day or Next Day$1129.27
Sale Price
$941.06
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Paddlewheel Flow Sensor, General Purpose, 12 Vdc to 32 Vdc, 0.3 FPS to 20 FPS, ± 1 % Accuracy, 4 mA to 20 mA, Titanium, 180 psi, 1/2 " to 4 " Pipe, FPB100 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
(Instrument-Sensor) Medium
Liquids
Manufacturer
Omega Engineering
Component
Paddlewheel Flow Meter
(Instrument-Sensor) Span
0 To 180 Psi
(Instrument-Sensor) Supply Voltage
12- 32 VDC
Features
4 to 20 mA and Programmable Switch/Pulse Divider Output
Low Flow Capabilities from 0.1m/s (0.3 ft/s)
Polypropylene or PVDF Material
Installs into Pipe Sizes DN 15 to DN 200 (0.5 to 8')
Accuracy± 1 %
ApprovalsCE
Cable Length1000 ft
Circuit ProtectionUp to 40V for 1 hour
Compatible ConnectorsFP-5300 Sensor Installation Fittings
Electrical OutputPulse Divider, SPDT Relay
Enclosure RatingsIP65, NEMA Type 4X
Frequency Input Range1 to 1000 Hz
Linearity Error±1%
Linearity Note±1% of max range at 25°C
Media CompatibilityLiquids
Operating Pressure, Min0 psi
Operating Temperature, Max85 °C
Operating Temperature, Min-18 °C
Over-Voltage Protection>40 Vdc over 1 hour
Pressure TypeGauge
Process Temperature, Max65 °C
Process Temperature, Min0 °C
Relative Humidity0 to 90% RH, non-condensing
Repeatability Error±0.5%
Repeatability Note±0.5% of max range at 25°C
Response Time100 ms
Storage Temperature, Max75 °C
Storage Temperature, Min-10 °C
Velocity, Max6 m/s
Velocity, Min0.1 m/s
Weight0 kg
