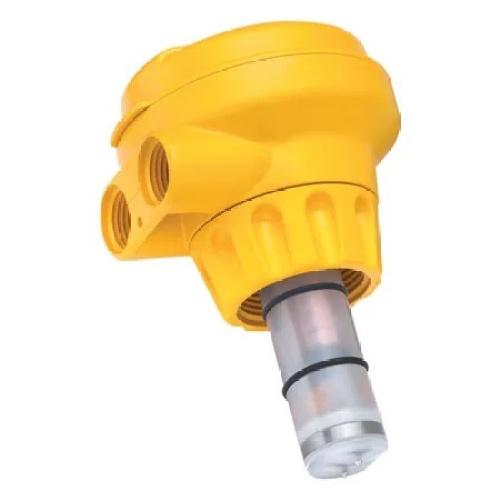

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 778931
Omega FMG3101-PP FREQUENCY MAGMETER 5 8" CE
Normally In Stock
Omega FMG3101-PP FREQUENCY MAGMETER 5 8" CE
Condition: New
Usually ships Same Day or Next Day$2055.13
Sale Price
$1712.61
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Electromagnetic Flow Meter, Conductive Fluids, 0.15 FPS to 16.4 FPS, 5 " to 8 " Pipe, FP-5300 Sensor Installation, ± 1 %, Amplified Square Wave, 316 SS, PP, FKM, FMG3000 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
Component
Electromagnetic Flow Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Acid Solutions
(Instrument-Sensor) Medium
Conductive Liquids
(Instrument-Sensor) Medium
Saltwater
(Instrument-Sensor) Supply Voltage
4.5- 26.4 VDC
Features
For 0.5 to 8 in. Pipes
No Moving Parts
0.05 to 5 m/s (0.15 to 16.4 ft/s) Flow Rate Range
Accurate Measurement Even in Dirty Liquids
Accuracy± 1 %
ApprovalsCE
Cable Length1000 ft
Conductivity> 20 µS/cm
Current Sink, Max50 mA
Enclosure RatingsIP65, NEMA Type 4X
Error Condition22.1 mA
IsolationLow voltage <48 Vac/Vdc from electrodes and auxiliary power
Linearity± 1%
Linearity Note± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)
Loop Accuracy32 µA maximum error (25°C @ 24 Vdc)
Loop Resistance300 Ω
Materials, Wetted316L Stainless Steel, FKM, Polypropylene
Media CompatibilityAcid Solutions, Conductive Liquids, Saltwater
Number of Outputs1
Operating Pressure, Max150 psi
Operating Temperature, Max70 °C
Operating Temperature, Min-10 °C
Output DetailAmplified Square Wave
Output Pulse Rate, Max1000 Hz
Power Supply Rejection± 1 µA/V
Process Connection TypeN/A
Process Temperature, Max85 °C
Process Temperature, Min0 °C
Pull Up Voltage, Max30 Vdc
Relative Humidity0.95
Repeatability± 0.5%
Repeatability Note± 0.5% of rdg @ 25°C (77°F)
Storage Temperature, Max70 °C
Storage Temperature, Min-20 °C
Supply Power TypeDC
Temperature Drift Note± 1 μA
Velocity, Max16.4 ft/s
Velocity, Min0.15 ft/s
Volumetric Flow Rate, Max0 GPM
Volumetric Flow Rate, Min0 GPM
