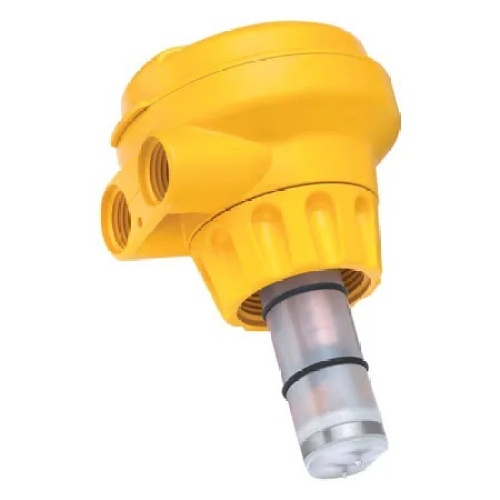

Omega FMG3002-PP CURRENT MAGMETER 0.5-4" CE
Normally In Stock
Code: 778929
Omega FMG3002-PP CURRENT MAGMETER 0.5-4" CE
Condition: New
Usually ships Same Day or Next Day$1756.07
Sale Price
$1463.39
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Electromagnetic Flow Meter, Conductive Fluids, 0.15 FPS to 16.4 FPS, 1/2 " to 4 ", FP-5300 Sensor Installation, ± 1 %, 4 mA to 20 mA, 316 SS, PP, FKM, FMG3000 Series, Each
Specifications
(Instrument-Sensor) NEMA Protection
NEMA 4X
(Instrument-Sensor) IP Protection
IP65
Component
Electromagnetic Flow Meter
Manufacturer
Omega Engineering
(Instrument-Sensor) Medium
Acid Solutions
(Instrument-Sensor) Medium
Conductive Liquids
(Instrument-Sensor) Medium
Saltwater
(Instrument-Sensor) Supply Voltage
21.6- 26.4 VDC
Features
For 0.5 to 8 in. Pipes
No Moving Parts
0.05 to 5 m/s (0.15 to 16.4 ft/s) Flow Rate Range
Accurate Measurement Even in Dirty Liquids
Accuracy± 1 %
ApprovalsCE
Cable Length1000 ft
Conductivity> 20 µS/cm
Current Sink, Max50 mA
Enclosure RatingsIP65, NEMA Type 4X
Error Condition22.1 mA
IsolationLow voltage <48 Vac/Vdc from electrodes and auxiliary power
Linearity± 1%
Linearity Note± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)
Loop Accuracy32 µA maximum error (25°C @ 24 Vdc)
Loop Resistance300 Ω
Materials, Wetted316L Stainless Steel, FKM, Polypropylene
Media CompatibilityAcid Solutions, Conductive Liquids, Saltwater
Number of Outputs1
Operating Pressure, Max150 psi
Operating Temperature, Max70 °C
Operating Temperature, Min-10 °C
Output DetailAmplified Square Wave
Output Pulse Rate, Max1000 Hz
Power Supply Rejection± 1 µA/V
Process Connection TypeN/A
Process Temperature, Max85 °C
Process Temperature, Min0 °C
Pull Up Voltage, Max30 Vdc
Relative Humidity0.95
Repeatability± 0.5%
Repeatability Note± 0.5% of rdg @ 25°C (77°F)
Storage Temperature, Max70 °C
Storage Temperature, Min-20 °C
Supply Power TypeDC
Temperature Drift Note± 1 μA
Velocity, Max16.4 ft/s
Velocity, Min0.15 ft/s
Volumetric Flow Rate, Max0 GPM
Volumetric Flow Rate, Min0 GPM
