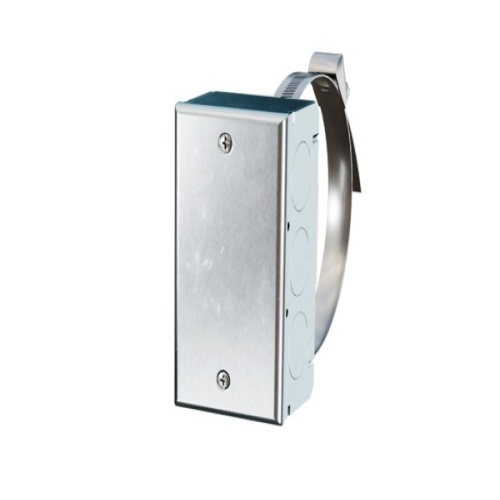

ACI 149005 Platinum RTD Strap
Normally In Stock
Code: 715384
ACI 149005 100 Ohm (Three Wires) RTD, Strap On, 10" Strap, Galvanized Enclosure
Condition: New
Usually ships Same Day or Next Day$49.68
Sale Price
$41.40
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
ACI 149005 100 Ohm (Three Wires) RTD, Strap On, 10" Strap, Galvanized Enclosure
Specifications
Manufacturer
ACI
Component
RTD
(Instrument-Sensor) Type
3 Wire-100 Ohm-Strap On
Features
The ACI Platinum Strap-On Series features a 1.5” square copper plate with the sensor encapsulated to the back side of the copper plate to improve the thermal conductivity between the pipe and sensor
Each sensor has Etched Teon colored lead wires to dierentiate the dierent sensor types
The three-wire “-3W” option should be ordered when using with a 3-Wire temperature transmitter or sensor conguration on your building management system or PLC (Programmable Logic Controller)
The purpose of the 3rd wire is to compensate for any external lead wire resistance that will aect your sensors output signal
ACI recommends the use of 18 AWG lead wires to reduce the external lead wire resistance when using a Platinum RTD sensor
Sensors in this series are manufactured using ACI’s proven double encapsulation process to eliminate the eects of moisture on the sensor as well as to improve thermal response times with our high quality, thermally conductive epoxy
Strap-On sensors can be used to monitor pipe sizes from 1 ¼” to 10” in diameter
ACI recommends to clean the pipe before applying thermal grease and installing the sensor before nally insulating the sensor from the eects of the ambient air
Optional Weather Proof enclosures and NIST Certicates are available as referenced on the back of the Product Data Sheet.
