Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 715255

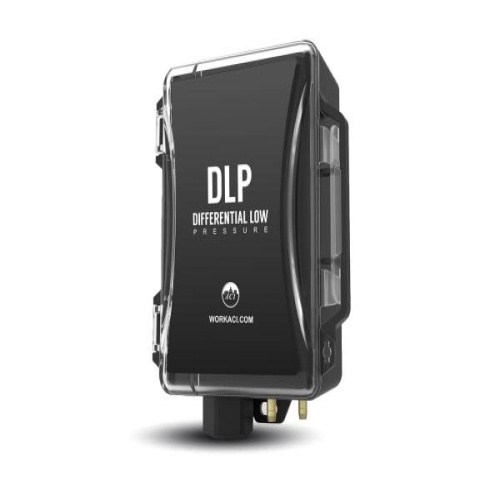

ACI 148636 DLP [Custom] Differential Low Pressure - A/DLP-750-P-B-D-B-3-A-0P-S
Normally In Stock

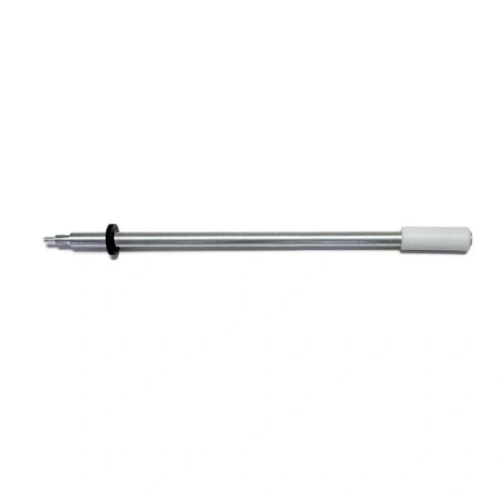

ACI 148636 Differential Low Pressure, 750 Pascals, Bidirectional, LCD, 0.25% Accuracy, w/ Pitot Tube and Din Rail, 4-20mA Output, No NIST, Standard
Condition: New
Usually ships Same Day or Next Day$379.01
Sale Price
$315.84
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
ACI 148636 Differential Low Pressure, 750 Pascals, Bidirectional, LCD, 0.25% Accuracy, w/ Pitot Tube and Din Rail, 4-20mA Output, No NIST, Standard
Specifications
Manufacturer
ACI
Component
Pressure
(Instrument-Sensor) Measurement Accuracy
0.25%
(Instrument-Sensor) Output Signal Range
4 - 20 mAmp
(Instrument-Sensor) Type
Differential Low Pressure
(Instrument-Sensor) Span
0 - 750 Pascals
Features
The DLP Series is based on a piezoresistive, silicon sensing element which senses DifferentialPressure and provides an analog output
The hinged cover on the DLP can be easily openedusing the integrated locking tab on the side of the enclosure
This allows for easy access to thezero function and field selectable ranges and outputs
The DLP Series also includes an optional,five digit LCD for installation and monitoring support
Field selectable analog outputs include0-5 and 0-10 VDC, or 4-20 mA which correlate to a uni or bi-directional pressure range from0-0.1” up to 0-40” of water column, depending on your model selection

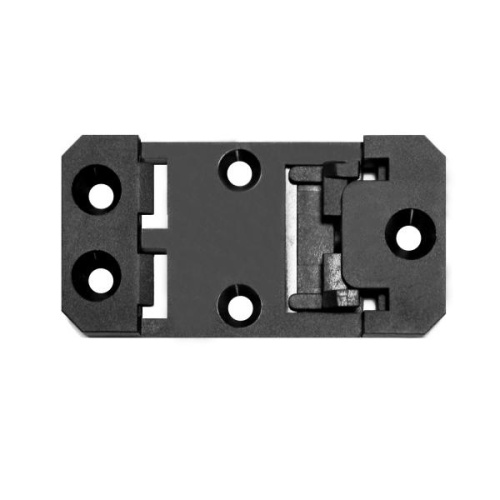

Each unit must beordered with the specific pressure range needed to meet desired application requirements.Options include a Pitot Tube or Din Rail Clip.
