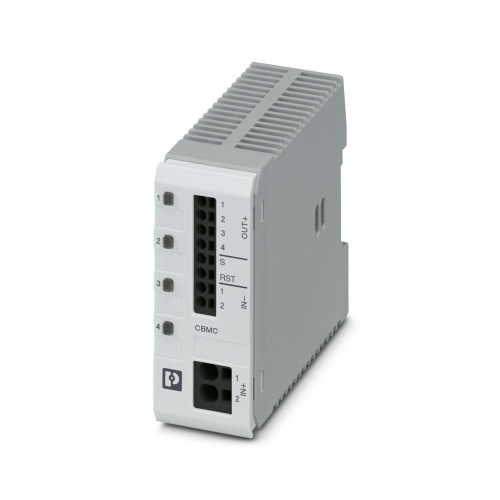

Phoenix Contact 1103875 Electronic circuit breaker CBMC E4 24DC/1-10A S-R-C
Normally In Stock
Code: 70854
CBMC E4 24DC/1-10A S-R-C Phoenix 1103875 Device circuit breakers max. 40 Amp DC 18 VDC - 30 VDC DIN rail: 35 mm Protective Devices *NON-CANCELLABLE, NON-RETURNABLE*
Condition: New
Usually ships within 7-14 days. Call for ship time*NON-CANCELLABLE, NON-RETURNABLE*
$179.58
Sale Price
$149.65
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1103875 A multi-channel electronic circuit breaker designed to protect up to four loads at 24V DC from overloads and short circuits can be preconfigured with various settings such as status output, reset input, and electronic locking of the set nominal currents, making it easy to install on standard DIN rail configurations.
Specifications
Breaker Mount Type
Din Rail
Breaker Number of Poles
Single Pole
Breaker Voltage Rating
18 VDC - 30 VDC
Breaker Function
Reset Input
Breaker Function
Status Output
Manufacturer
Phoenix Contact
Component
Electronic Circuit Breaker
Breaker Amperage Rating
Max. 40 Amp DC
Features
Enhanced diagnostic and control options, thanks to integrated status output and reset input
Circuits can be adjusted without any tools by means of one single pushable LED button
Pre-configuration available – for device protection that meets the specific requirements of your system
Easy device replacement without replanning, thanks to compact design and options for individual adjustments
Reliable protection against unintentional adjustment of current values, thanks to electronic locking
Downloads
Phoenix 1103875 CAD data International.dxfPhoenix 1103875 CAD data International.pdfPhoenix 1103875 CAD data International.stpPhoenix 1103875 Flyer English-2.pdfPhoenix 1103875 Flyer English.pdfPhoenix 1103875 Manufacturers declaration International.pdfPhoenix 1103875 Package Slip International.pdfPhoenix 1103875 Tender Text English.zipPhoenix 1103875 Various English.pdf
