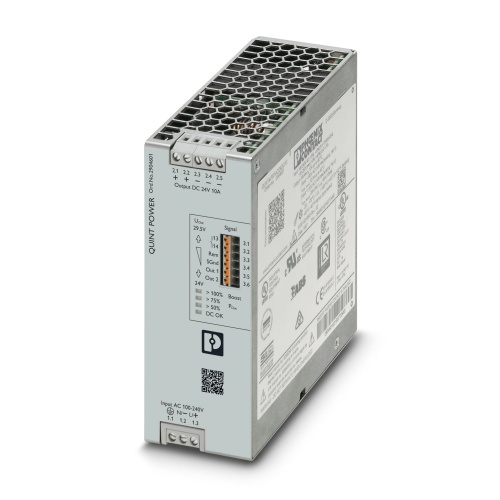

Phoenix Contact 2904601 Power supply QUINT4-PS/1AC/24DC/10
Normally In Stock
Code: 36888
QUINT4-PS/1AC/24DC/10 Phoenix Contact 2904601 Power Supply 24V10A QUINT
Condition: New
Usually ships Same Day or Next Day$354.64
Sale Price
$295.53
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Phoenix Contact 2904601 The power supply features a primary-switched quint power design with the ability to customize its output characteristics, incorporates selective fuse breaking technology for added safety, and includes an NFC interface for user connectivity, accepting single-phase input and delivering up to 240W of power at 24V DC and 10A.
Specifications
Power Supply Type
Switching
Power Supply Mounting
Din Rail Mount
Power Supply Number of Outputs
Single Output
Power Supply Voltage Output
24 VDC
Power Supply Watts
240 Watt
Power Supply Housing
Enclosed
Power Supply Amperage Output
10 Amp
Component
Power Supply
Manufacturer
Phoenix Contact
Line
QUINT
Power Supply Amperage Output Range
6-10 Amp
Power Supply Voltage Input Range
100 VAC - 240 VAC
Features
Easy system extension thanks to static boost
starting of difficult loads thanks to dynamic boost
Preventive function monitoring indicates critical operating states before errors occur
Signaling thresholds and characteristic curves that can be adjusted via NFC maximize system availability
SFB technology trips standard circuit breakers selectively, loads that are connected in parallel continue working
High degree of immunity, thanks to integrated gas-filled surge arrester and mains failure bridging time of more than 20 milliseconds
Robust design thanks to metal housing and wide temperature range from -40°C to +70°C
Worldwide use thanks to the wide range input and international approval package
Downloads
Phoenix 2904601 CAD data International.dxfPhoenix 2904601 CAD data International.pdfPhoenix 2904601 CAD data International.stpPhoenix 2904601 Data Sheet English.pdfPhoenix 2904601 Manual English.pdfPhoenix 2904601 Manufacturers declaration English.pdfPhoenix 2904601 Manufacturers declaration International-2.pdfPhoenix 2904601 Manufacturers declaration International.pdfPhoenix 2904601 Package Slip International.pdfPhoenix 2904601 Software International.zipPhoenix 2904601 Tender Text English.zipPhoenix 2904601 Various English.pdfPhoenix 2904601 Various English.wmv
